The SPRacingF3 gives you all the features you need for the heart of your aircraft, whether you're into FPV racing, acrobatic flying or aerial photography it's perfect.
Supports a variety of aircraft, tricopters, quadcopters, hexacopters, octocopters, planes and more.
The SPRacingF3 builds on tried and tested software, processor and sensor technology to make your aircraft fly like it's on rails.
Use all the features all the time; e.g. Connect your OSD + SmartPort + SBus + GPS + LED Strip + Battery Monitoring + Sonar + 8 motors - all at the same time!
The SPRacingF3 runs Cleanflight which can be configured to suit your needs using a cross-platform GUI (Windows/OSX/Linux).

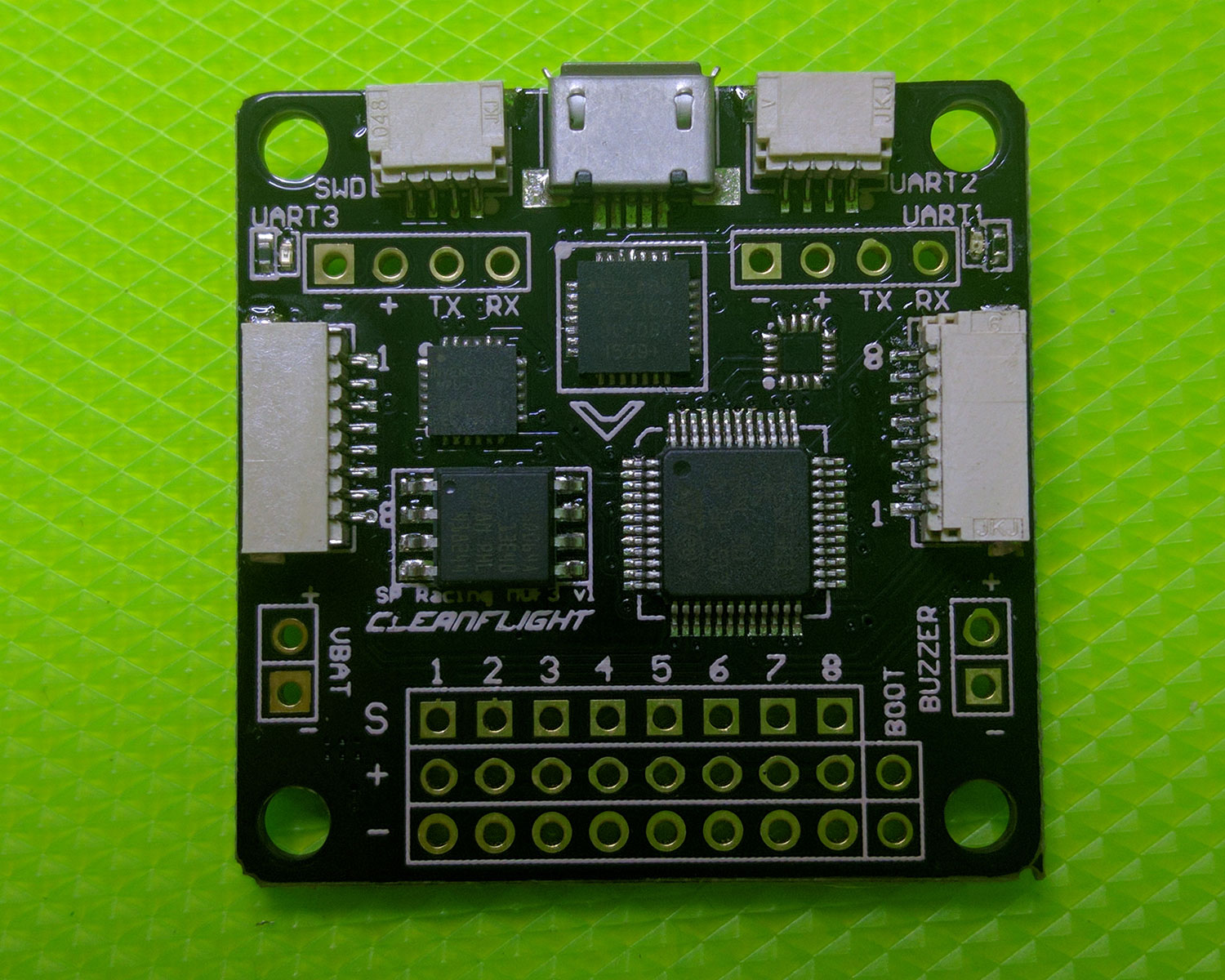

The SPRacingF3 has a standard 36x36mm form-factor with 30.5mm mounting holes and weighs just 6 grams.

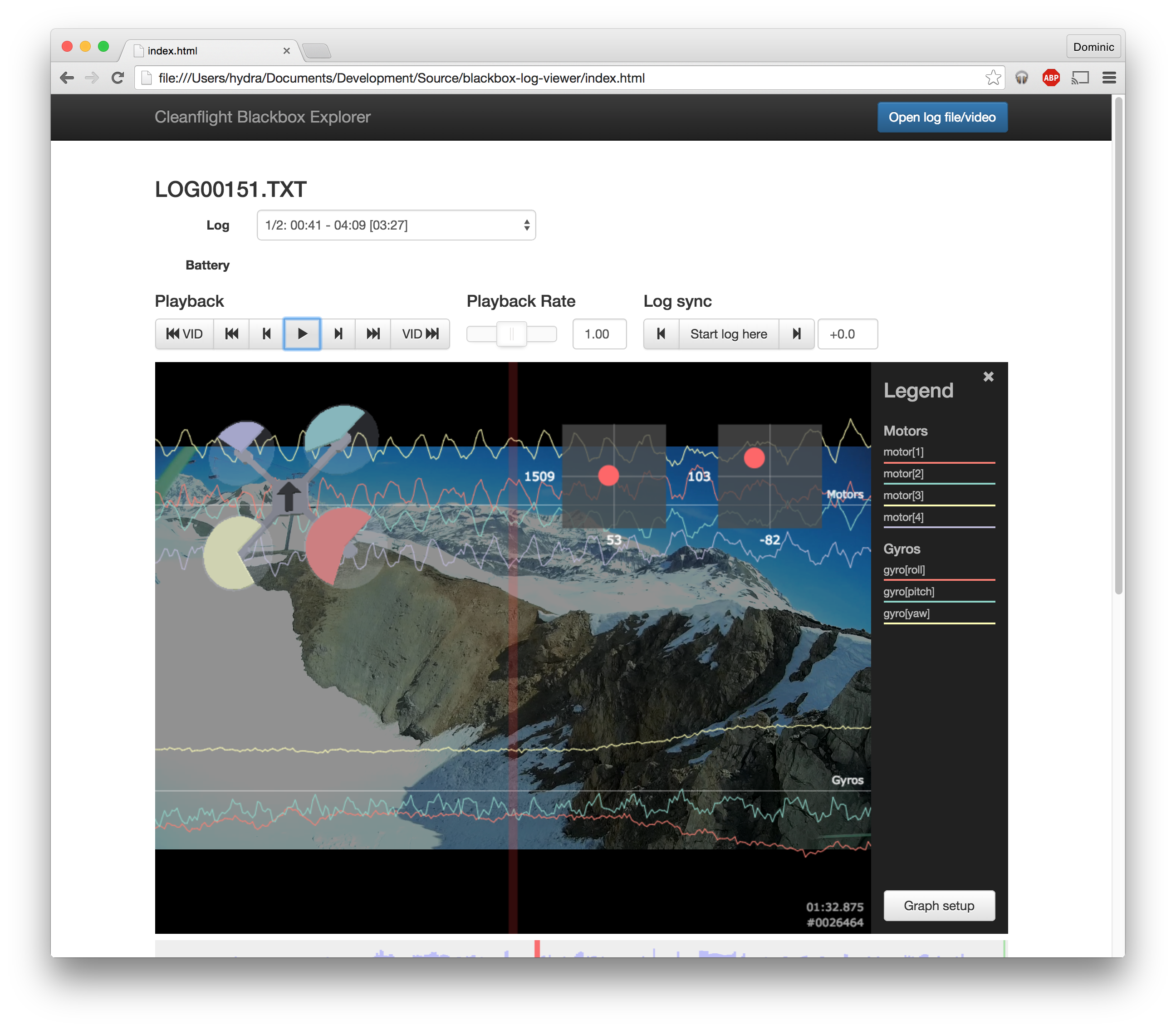

On-board high-capacity black box flight log recorder - optimize your tuning and see the results of your setup without guesswork.
The SPRacingF3 has an ARM Cortex-M4 72Mhz CPU with Math co-processor (FPU) for efficient flight calculations that gets more done in less time.
Loop times up to ~2x as fast as previous-generation STM32F1 based boards.
Developer friendly debugging port (SWD) and boot mode selection, unbrickable bootloader.
Full support for OneShot ESCs for easy PID tuning and a sharper response.
Supports SBus, CrossFire, Spektrum1024/2048, XBus/IBus, SumH, SumD, FPort, PPM, PWM receivers & more. No external inverters required (built-in).

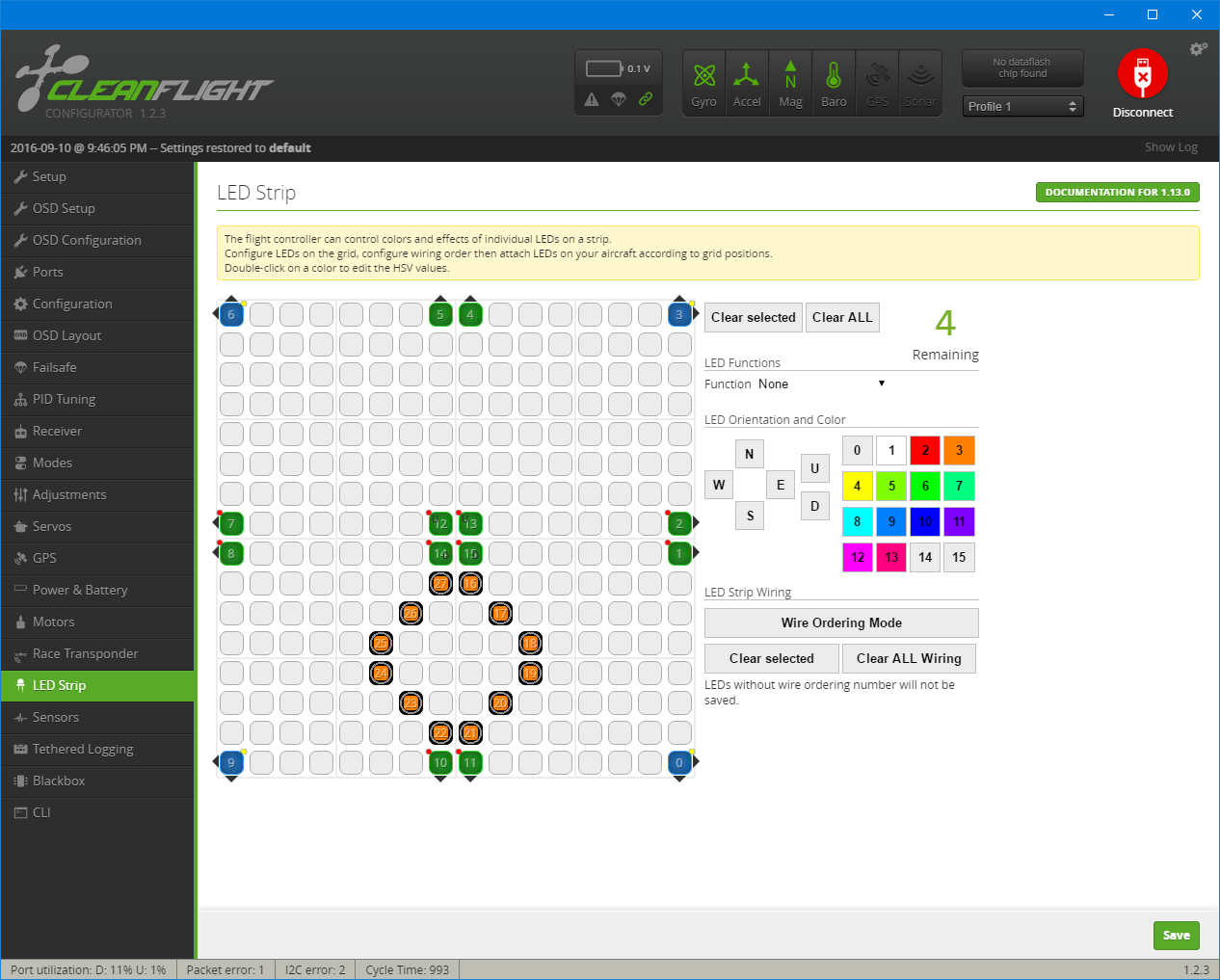

Dedicated output for multi-colored LED strips - great for FPV racing, line-of-sight flying orientation and night flying.
Battery monitoring ports for voltage and current.
Sonar support for precision low-altitude hold.
I2C port always powered, perfect for external sensors or always-on OLED Screen.
Buzzer port for audible warnings and notifications.

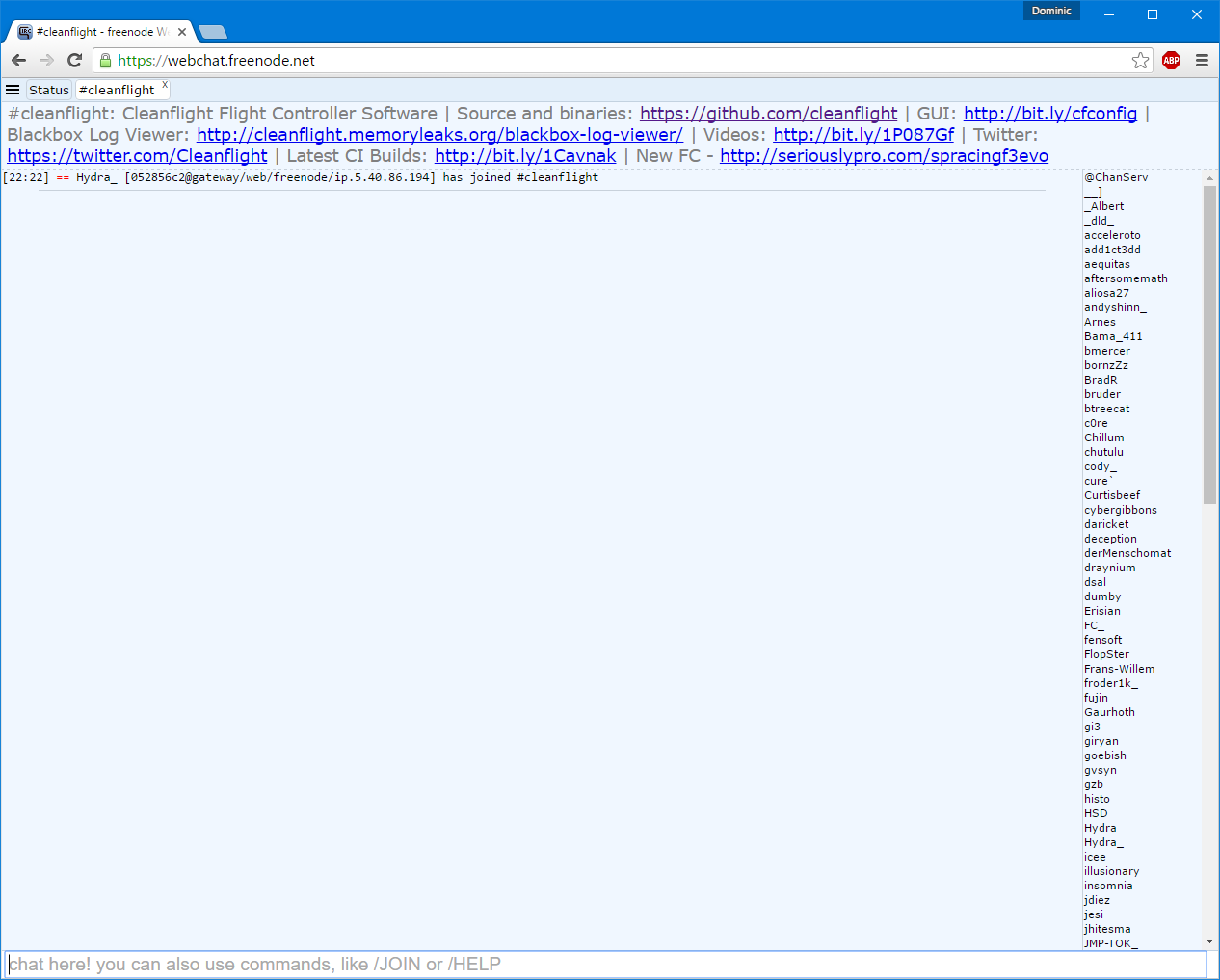

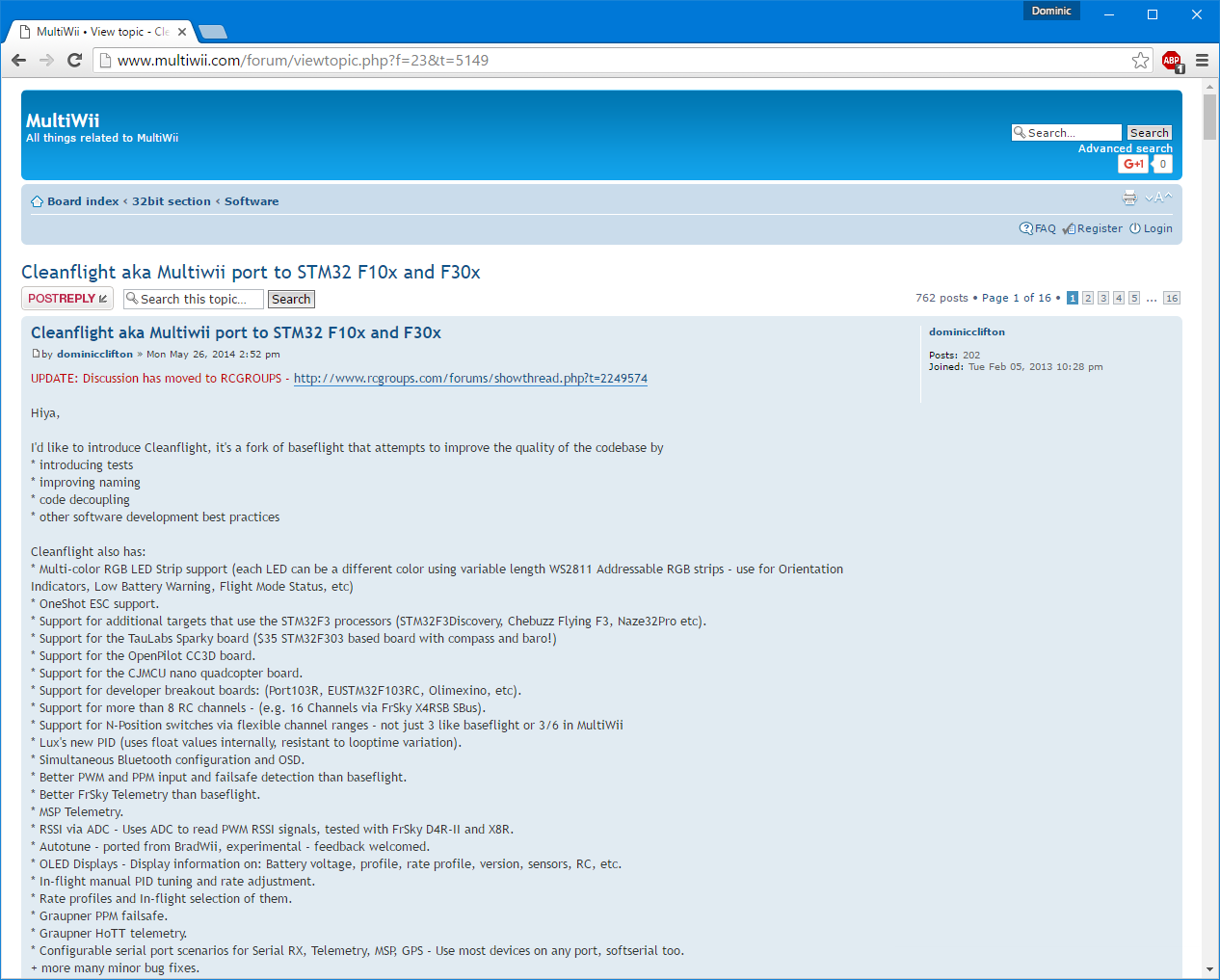

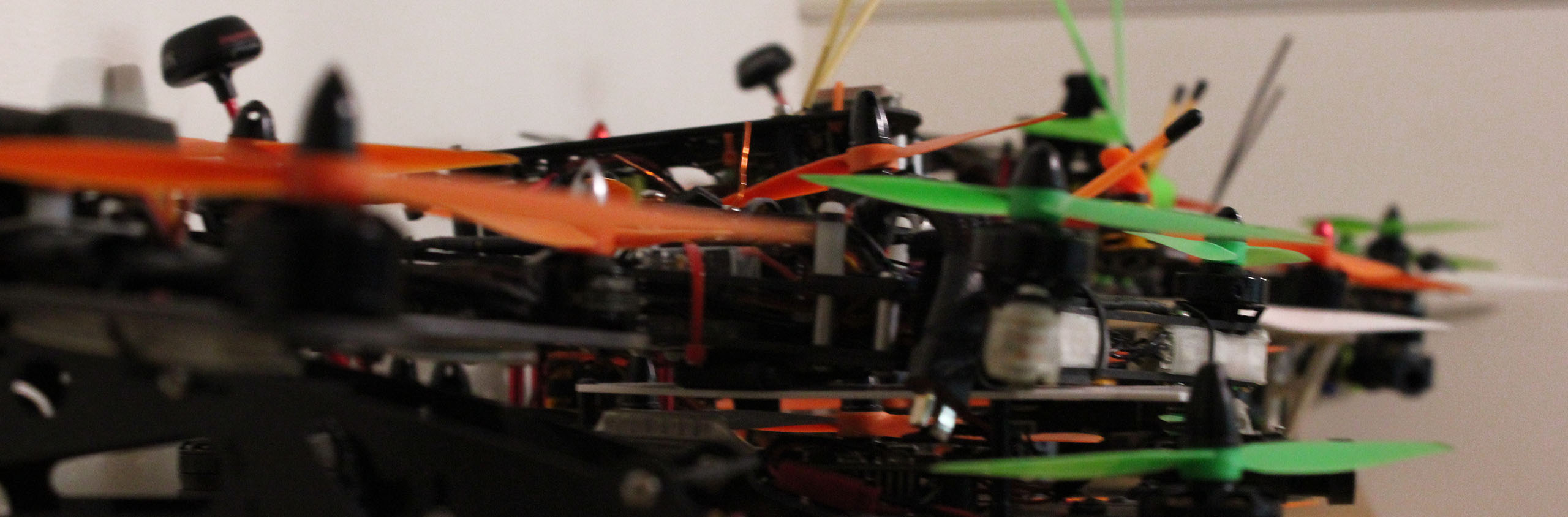

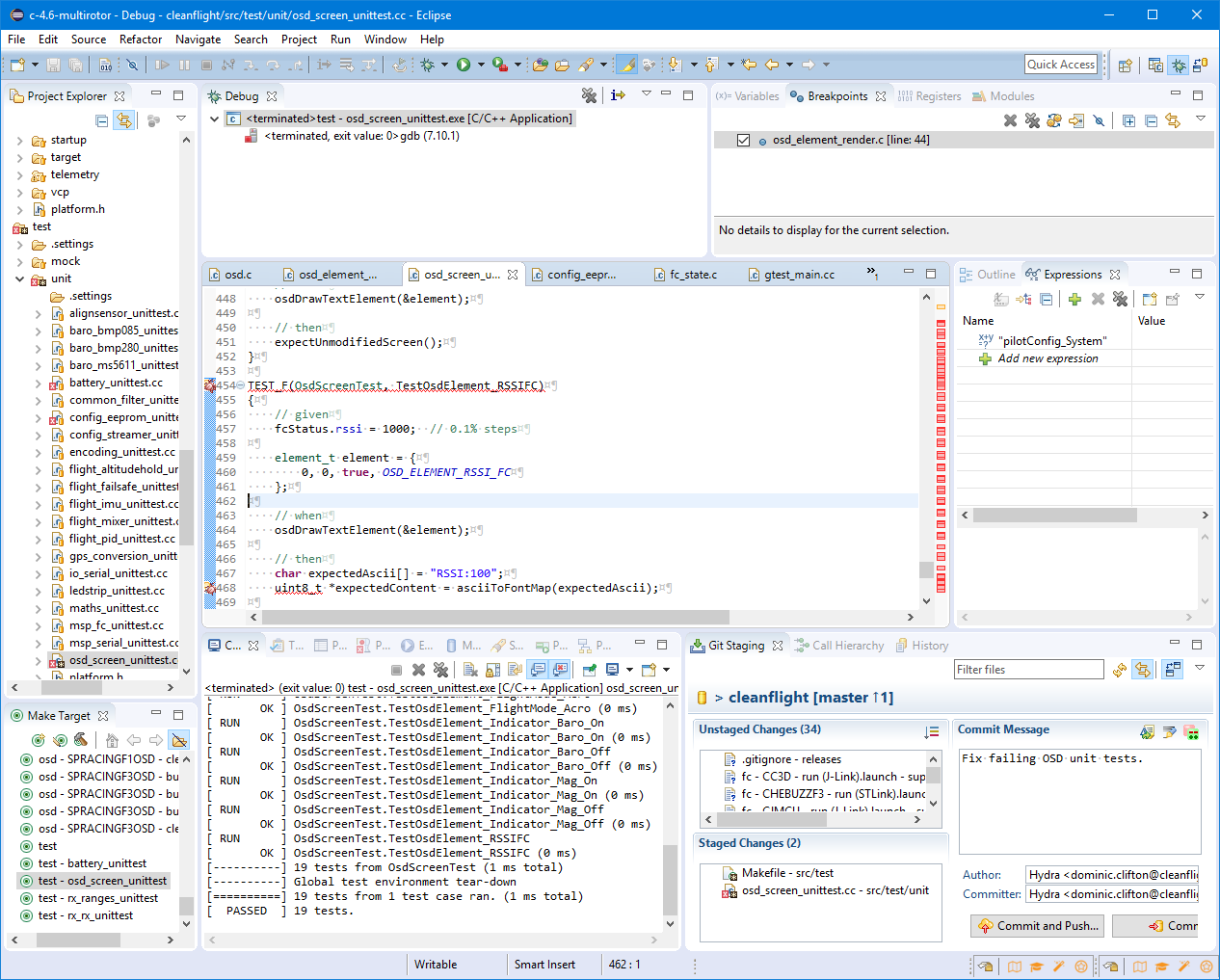

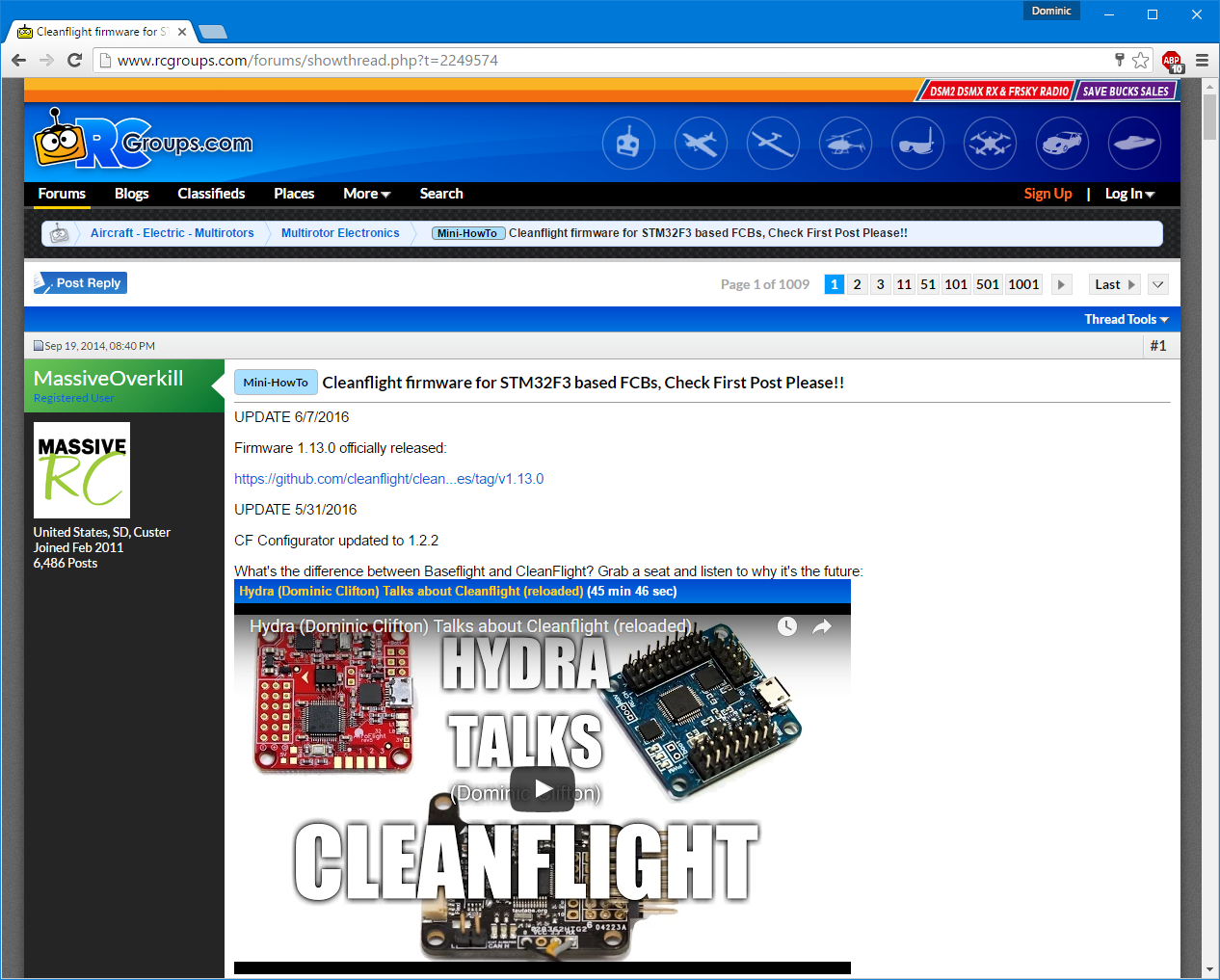

Screenshots and photos of the project and related sites and tools.

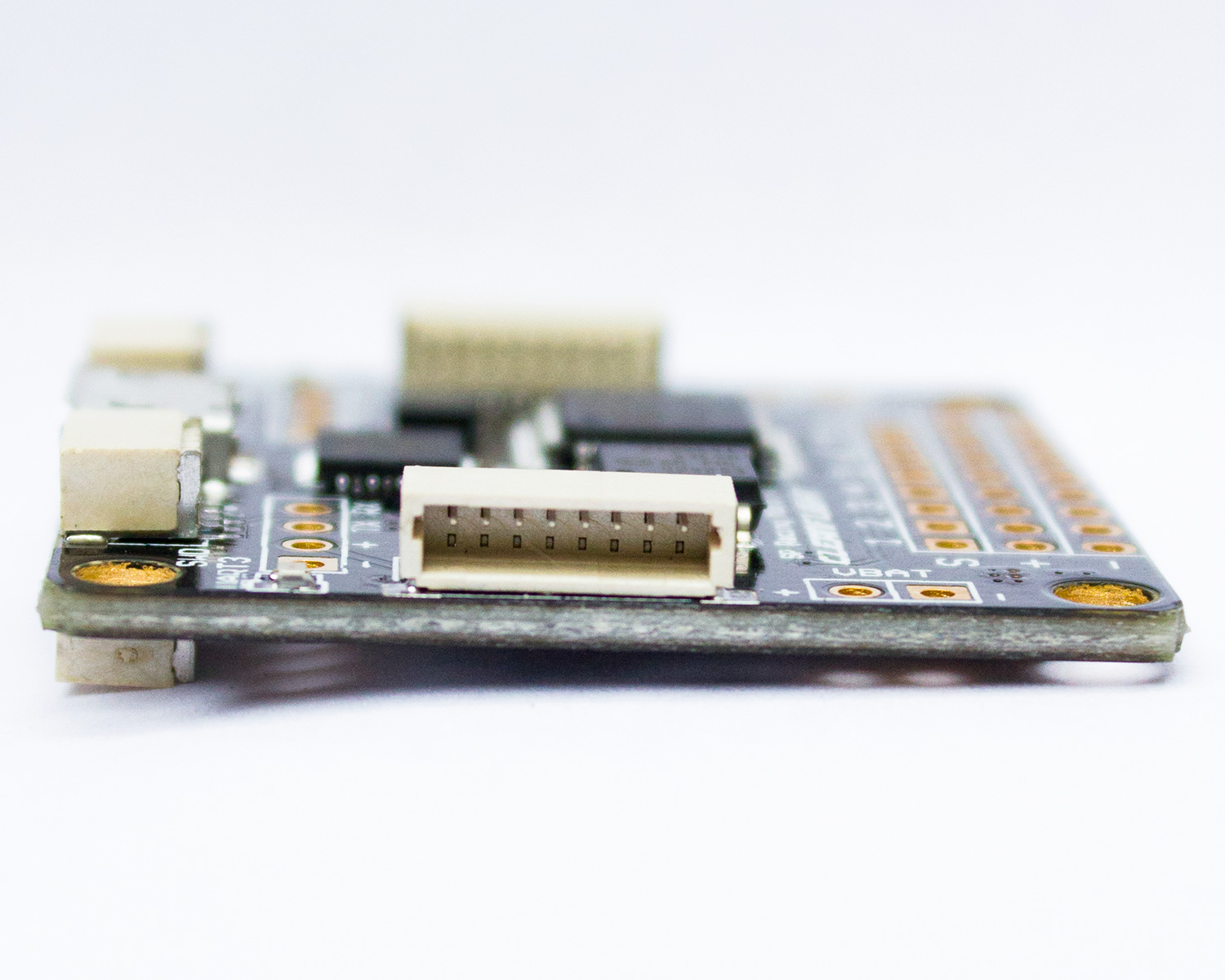

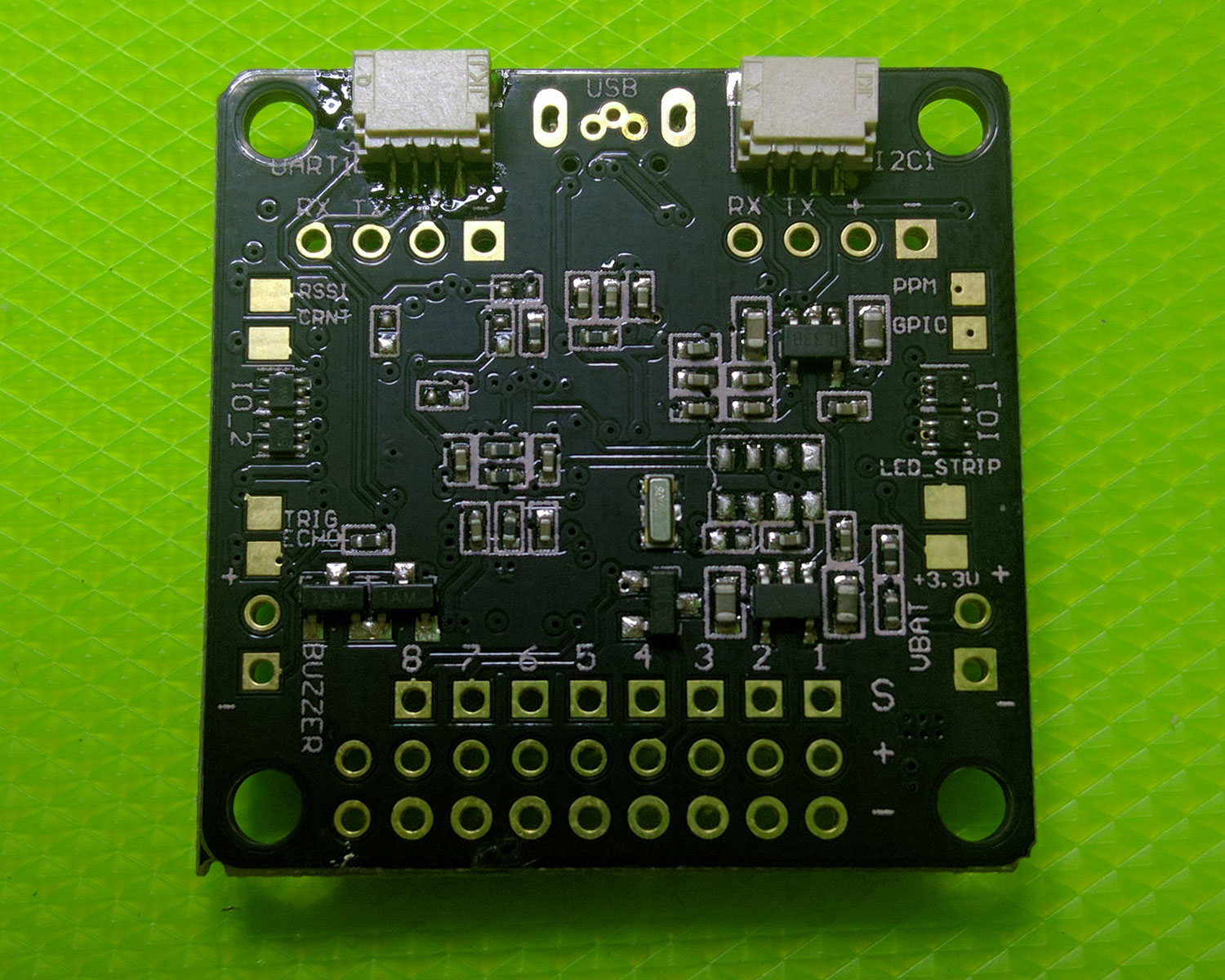

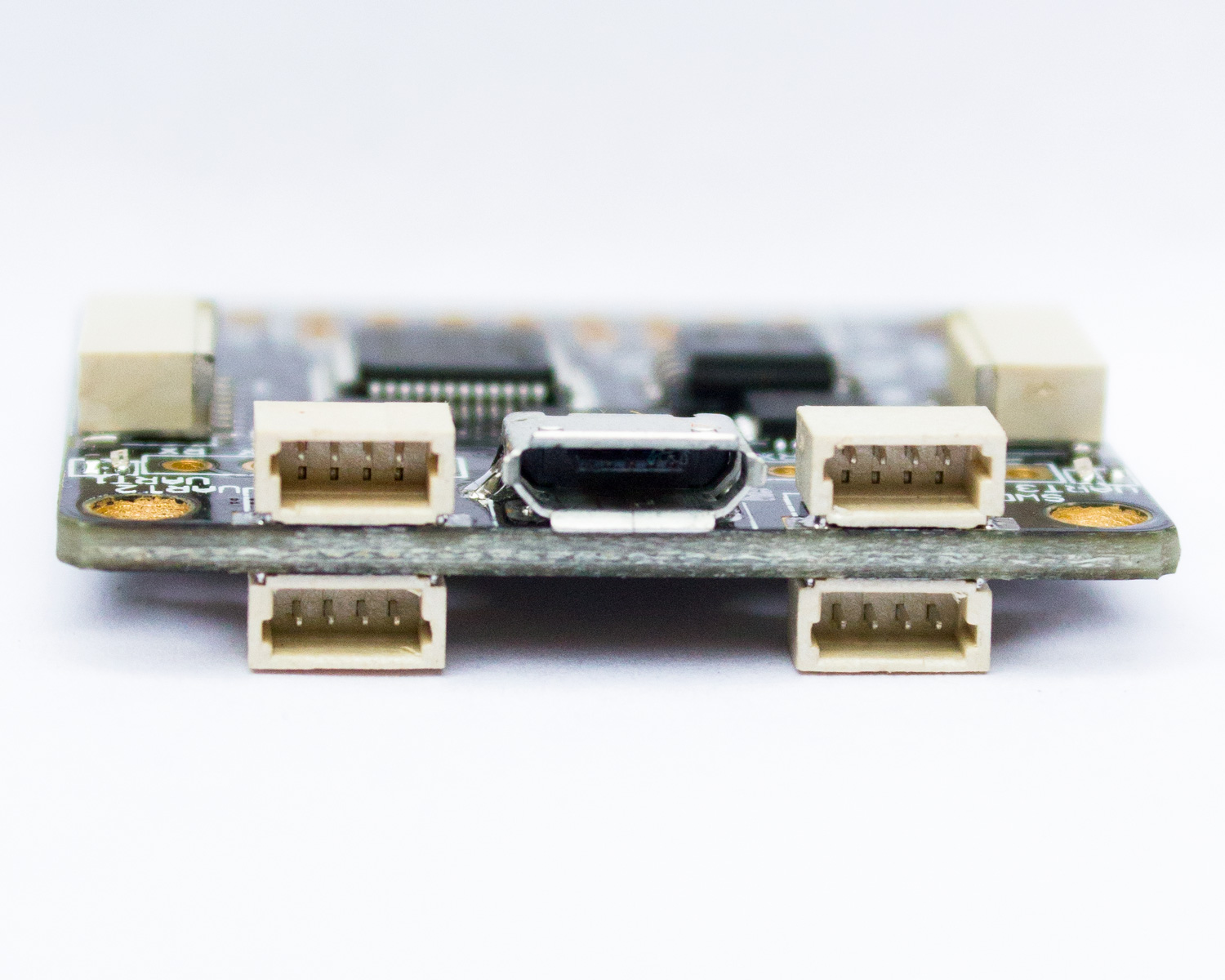

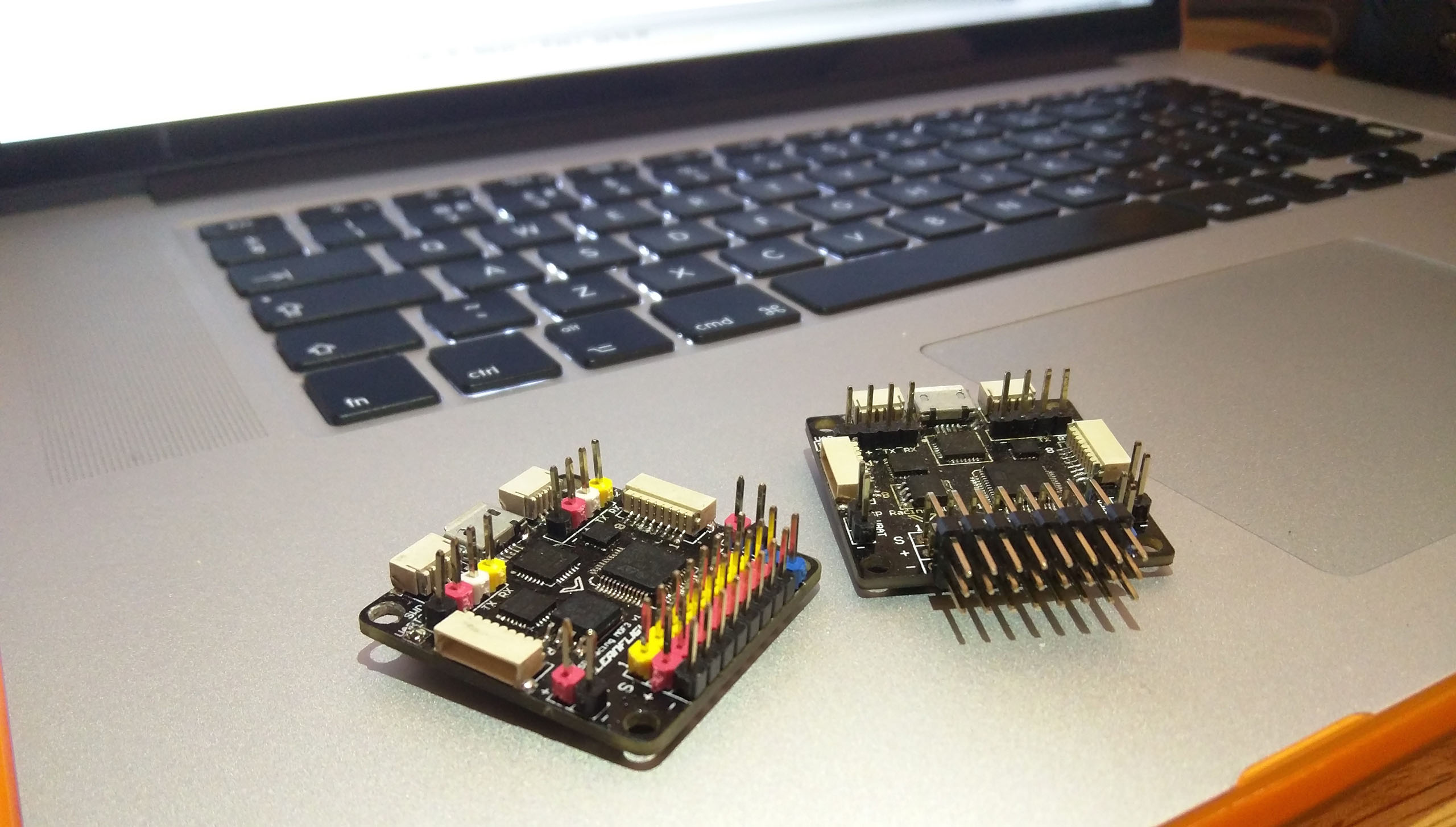

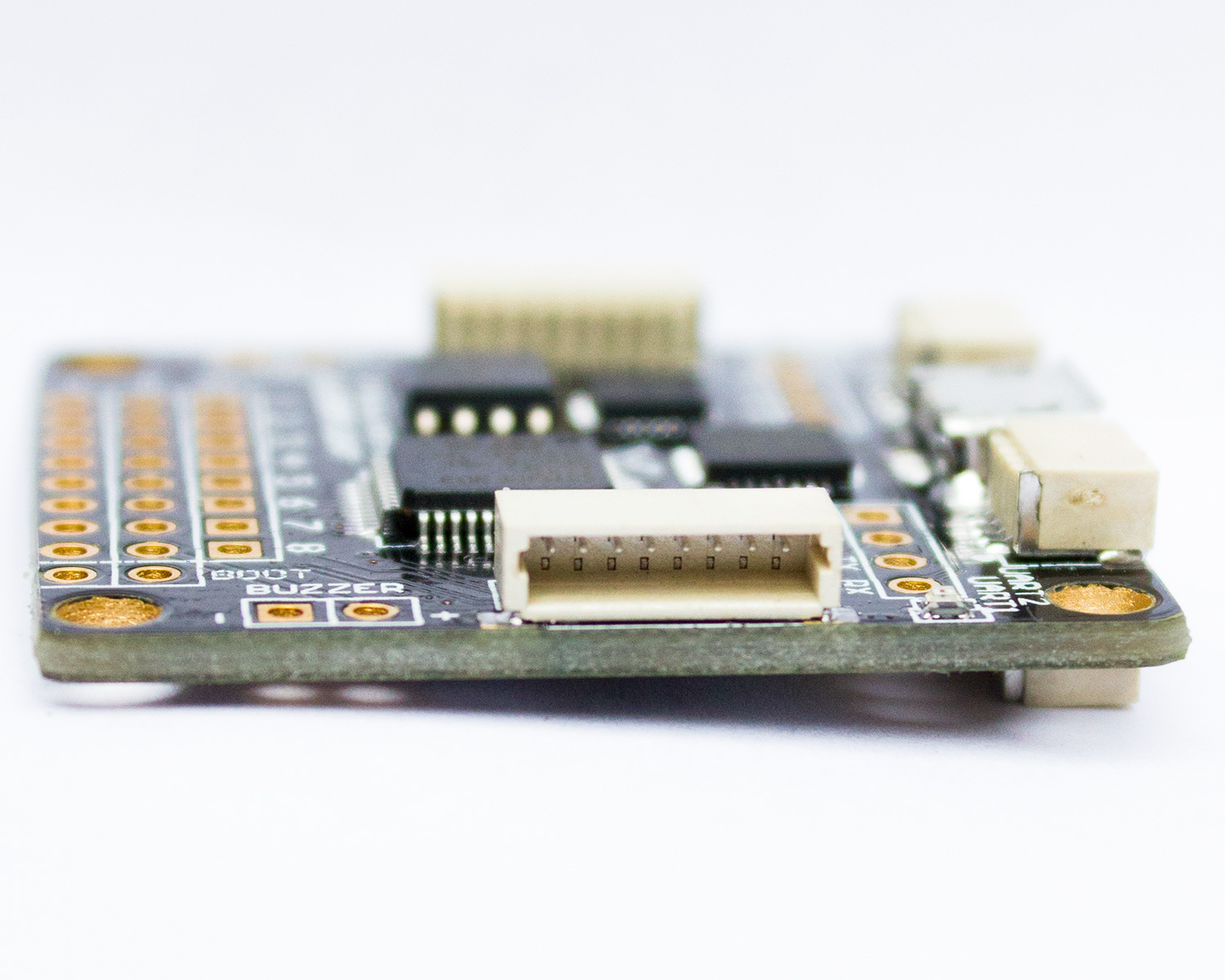

Some photos are from hand-soldered pre-production boards. Production boards are of a much higher quality.
The hardware was designed by the lead developer of Cleanflight to be more capable than the previous-generation STM32F1-based boards after hearing feedback from the Cleanflight users, contributors and top-pilots.
Dedicated PWM outputs
PWM Inputs
I/O Connections
Mhz Clock Speed
Hardware Serial Ports
Mb Flash Storage

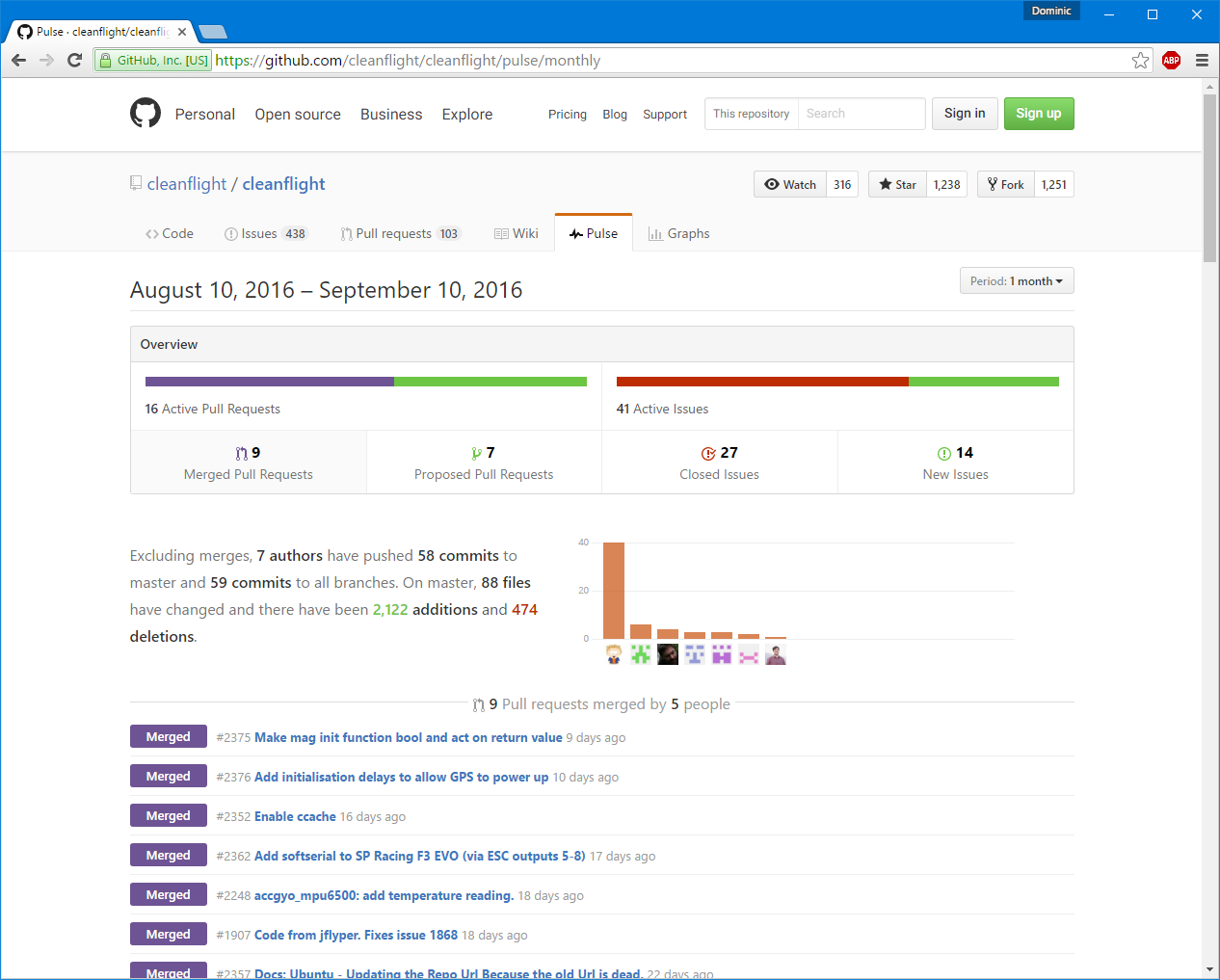

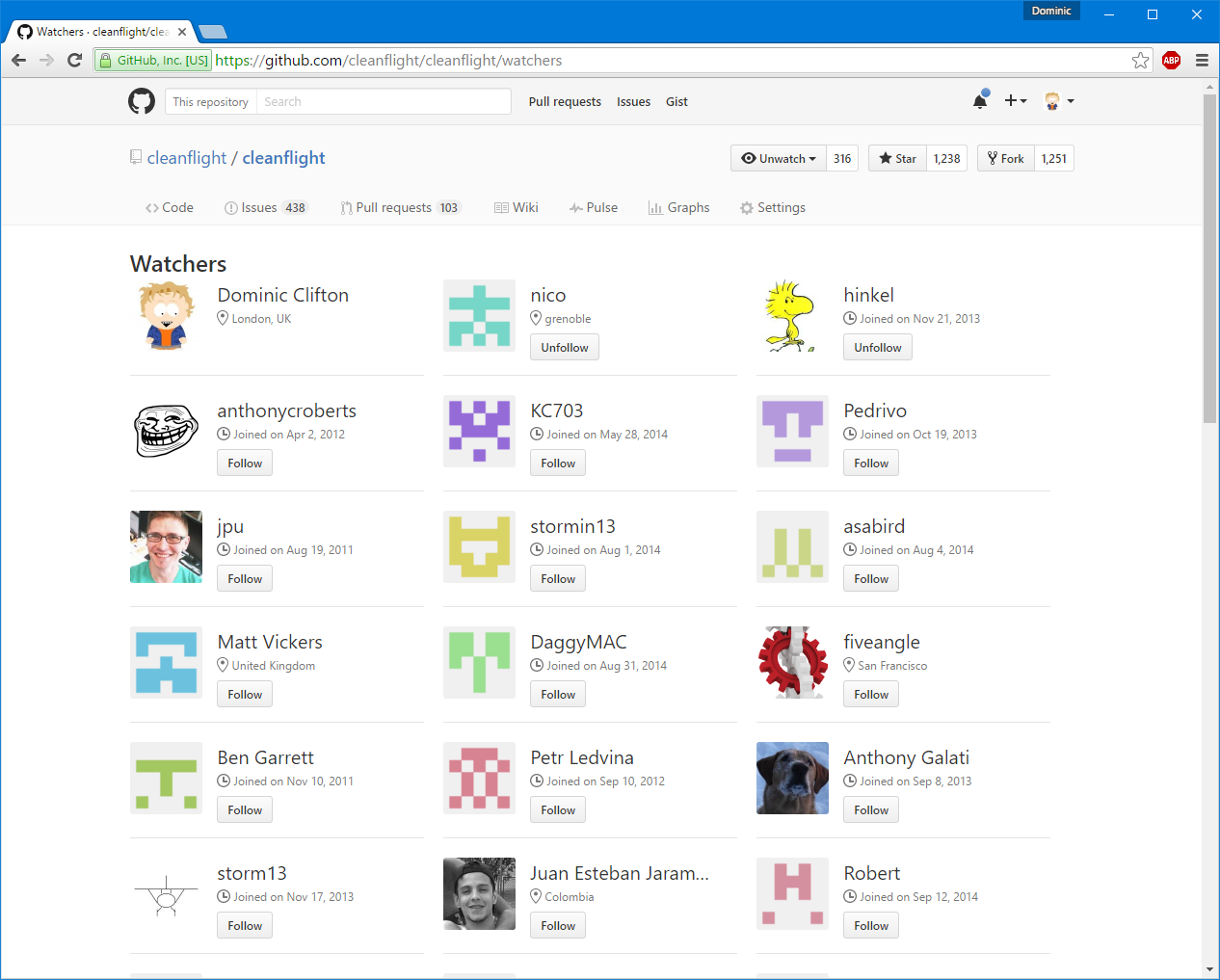

The SPRacingF3 runs the open-source Cleanflight flight control (FC) software which has an ever-growing community of friendly developers and users. Being open-source means that you too can contribute to the system.
Cleanflight comes with a detailed manual that is reviewed and maintained by the Cleanflight developers and community. No more out-of-date wiki pages and second-hand information.
Don't just take our word for it, listen to these excited users!
“Ok now I'm too excited to sleep!”
FinalGlideAus - YouTube“It is a really great Flight Controller, thanks for the work. It feels really locked in.”
Charpu - YouTube“crashed into a dog turd - Otherwise excellent, The board performs incredibly well flying!”
ATA250 - #Cleanflight“Cleanflight is the hip new firmware these days.”
TheNickDude - YouTube“hydra + the channel helped me out to get it right”
Petfrogg - #Cleanflight“New FC with a burning passion and a funny feeling inside”
Teslahed - #Cleanflight“Yeah, it flew great when i took off”
acceleroto - #Cleanflight“It flies much better outdoors than in the garage”
viper522 - #Cleanflight“Ohhhh yeahhhh”
Richard Dagenais - Facebook“This is awesome stuff”
Trent Jones - Facebook“yeah i was really impressed”

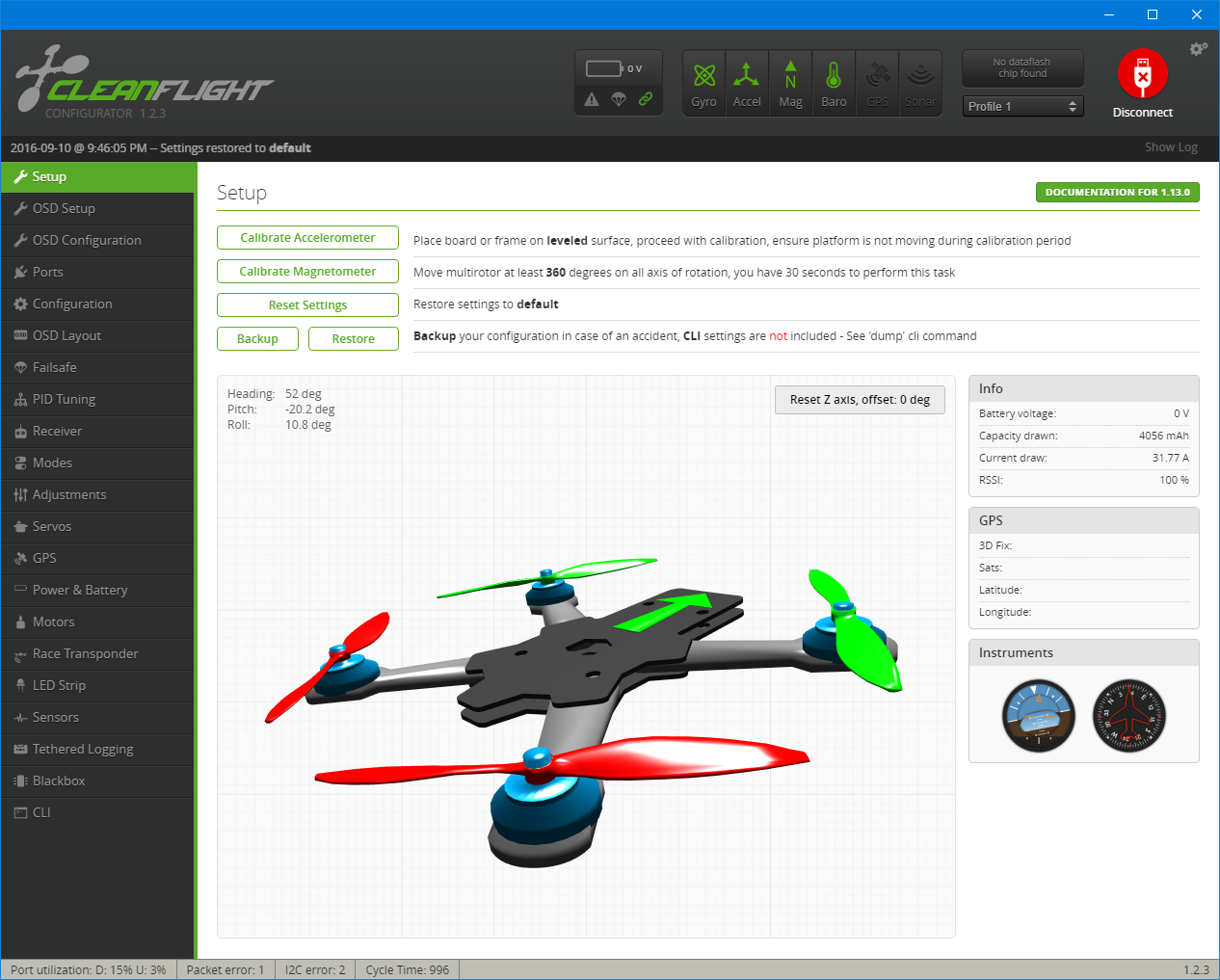

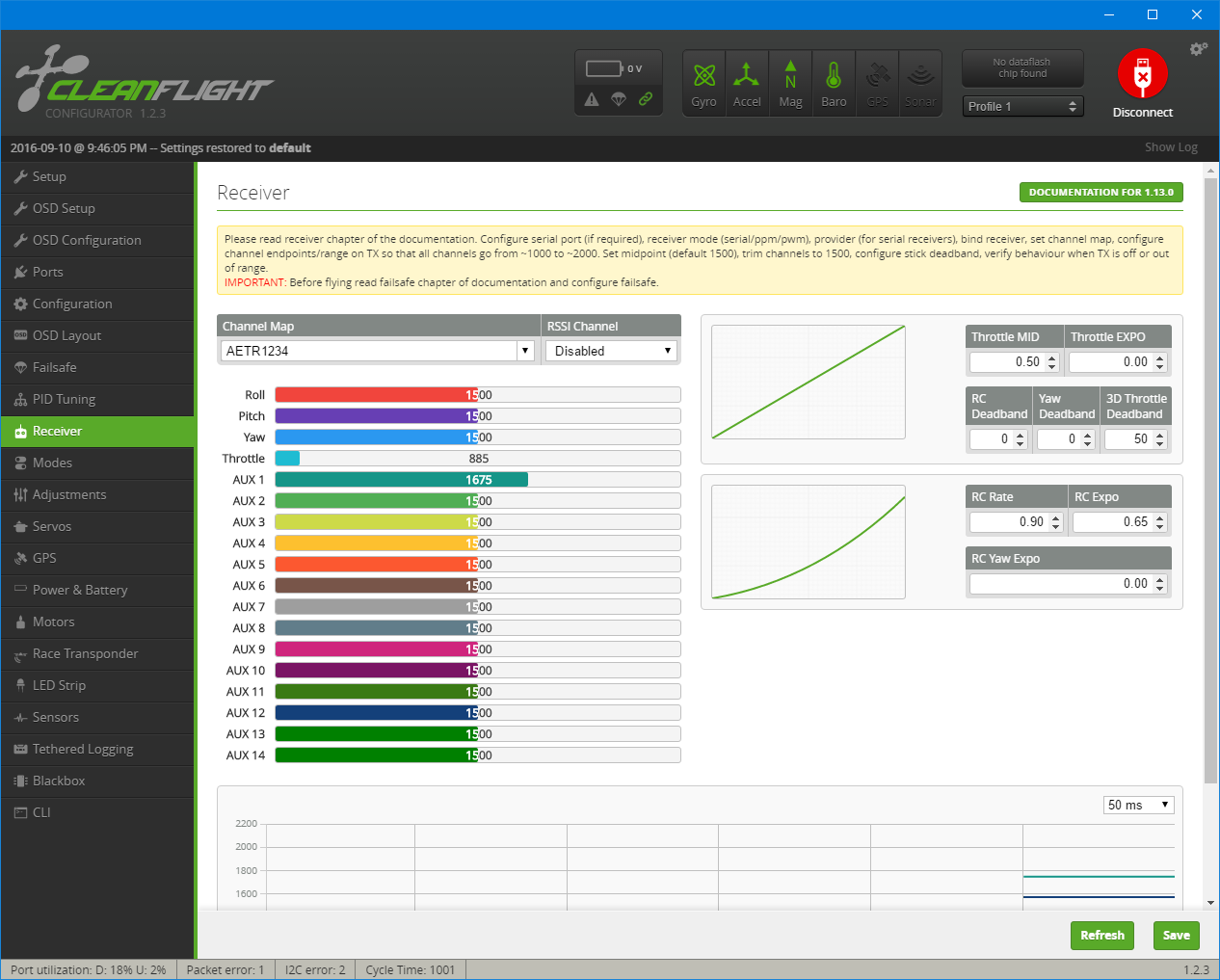

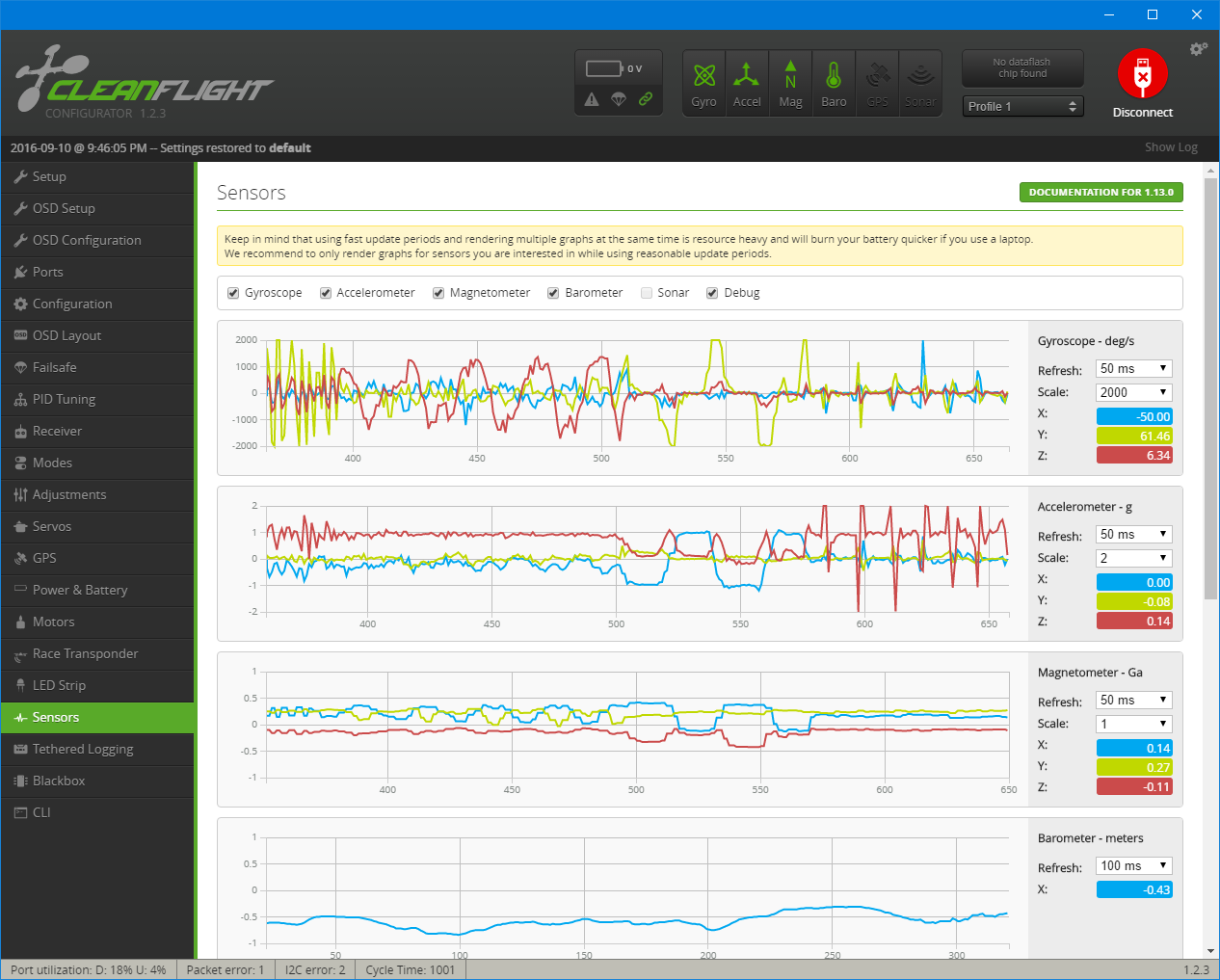

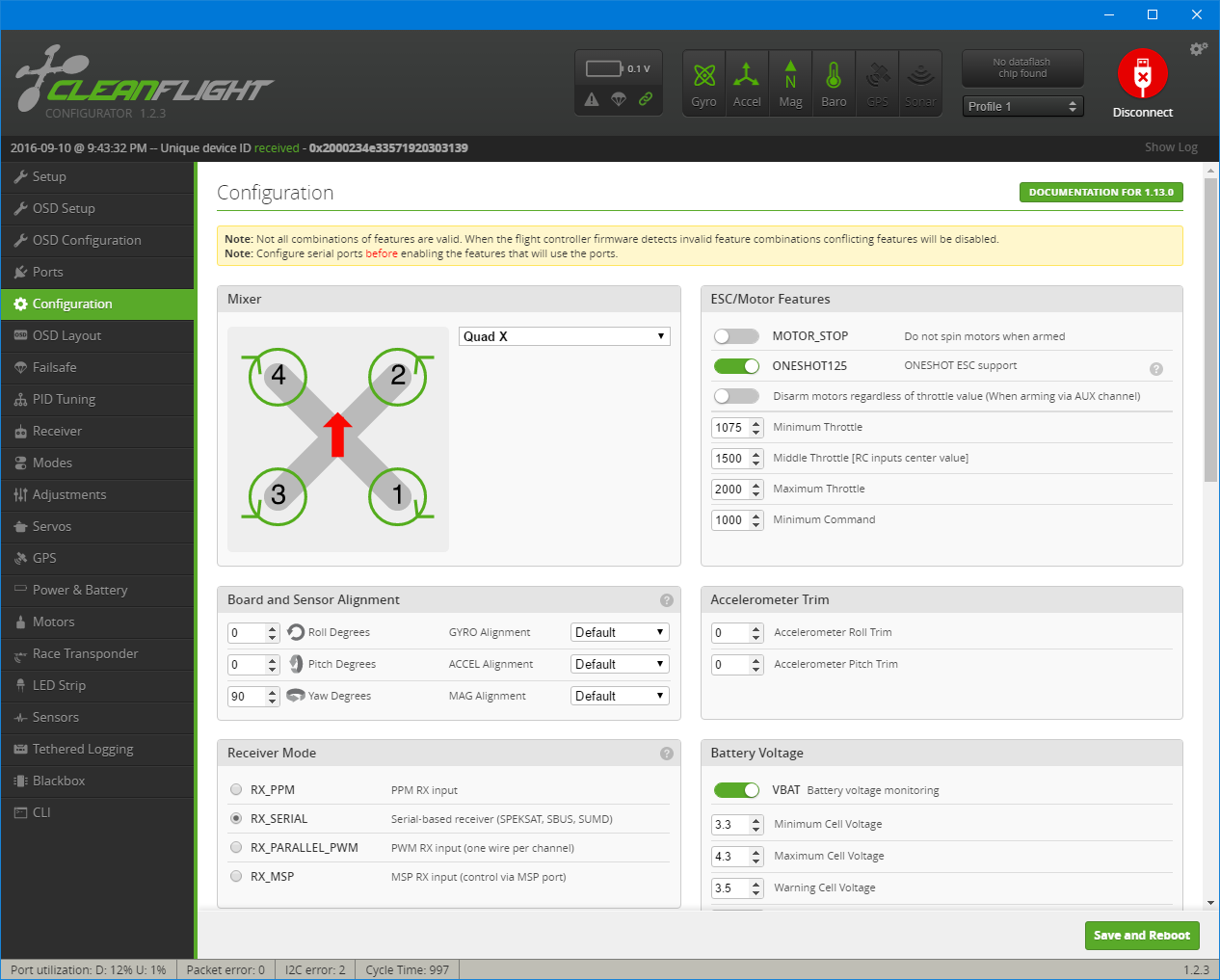

Ben250 - #CleanflightThe SPRacingF3 runs Cleanflight and is configured using the Cleanflight Configurator. It has a stack of great features, such as these:
