The SPRacingF3OSD combined with an EVO/ACRO/DELUXE flight-controller is all you need for the core of your compact new multi-rotor build - just add Motors, ESCs and a receiver and you're done!
Can also be used as an standalone IR transponder for lap-timing, just configure IR code connect LED and 2-4S Battery and go race!

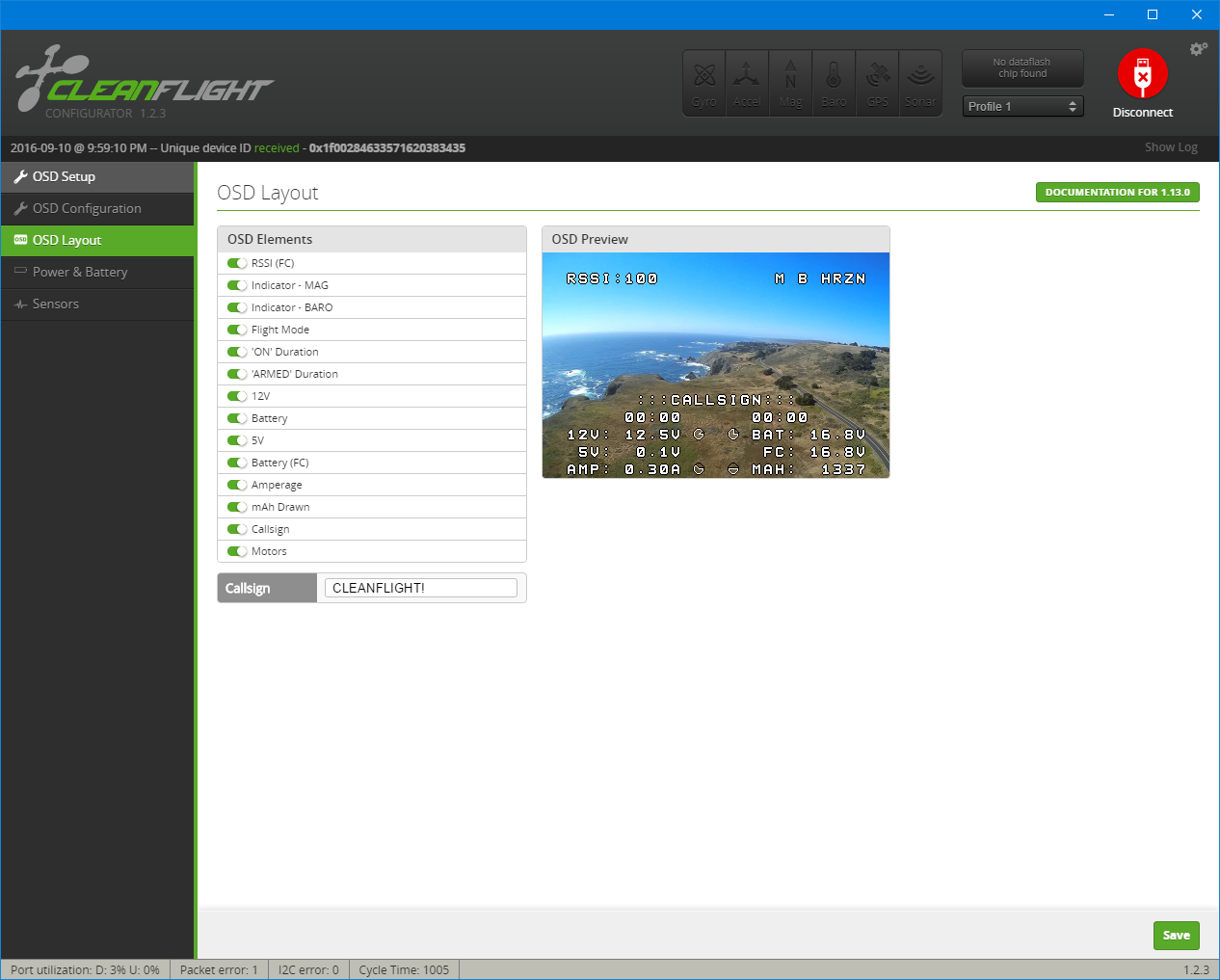

Configure the elements on your OSD to your taste.

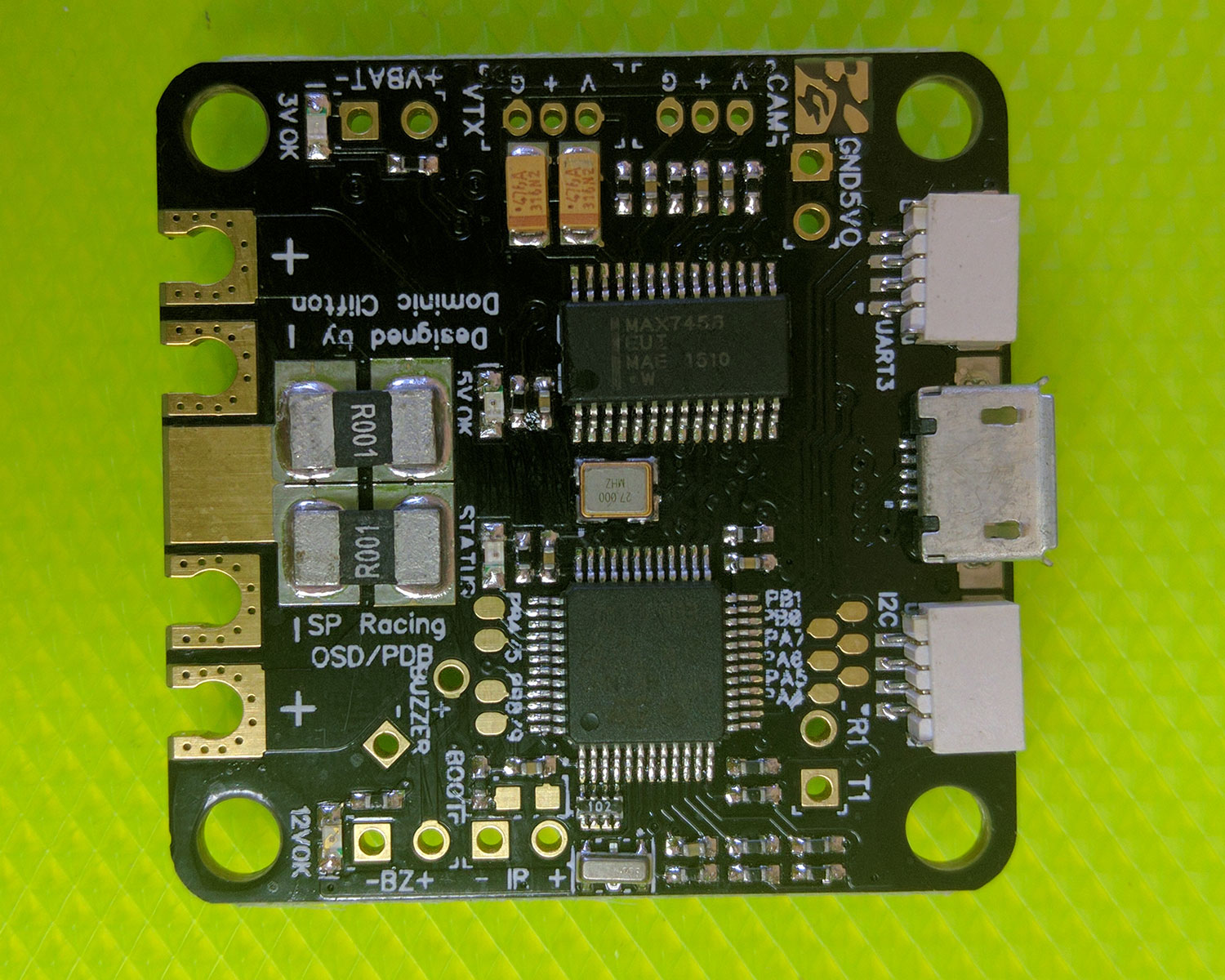

The SPRacingF3OSd has an ARM Cortex-M4 72Mhz CPU with Math co-processor (FPU) for a fast OSD system.
No-longer are we stuck with old 8-bit ATMEL processors.
All-new configution section in the Cleanflight configurator allows you to customise any aspect of your OSD system.
High-current 5V and 12V power supplies for powering your FC, Receiver, LED Strip, VTX and other accessories.
Provides smoothed power to your FC, OSD and VTX. Isolates noise from your ESCs and motors.

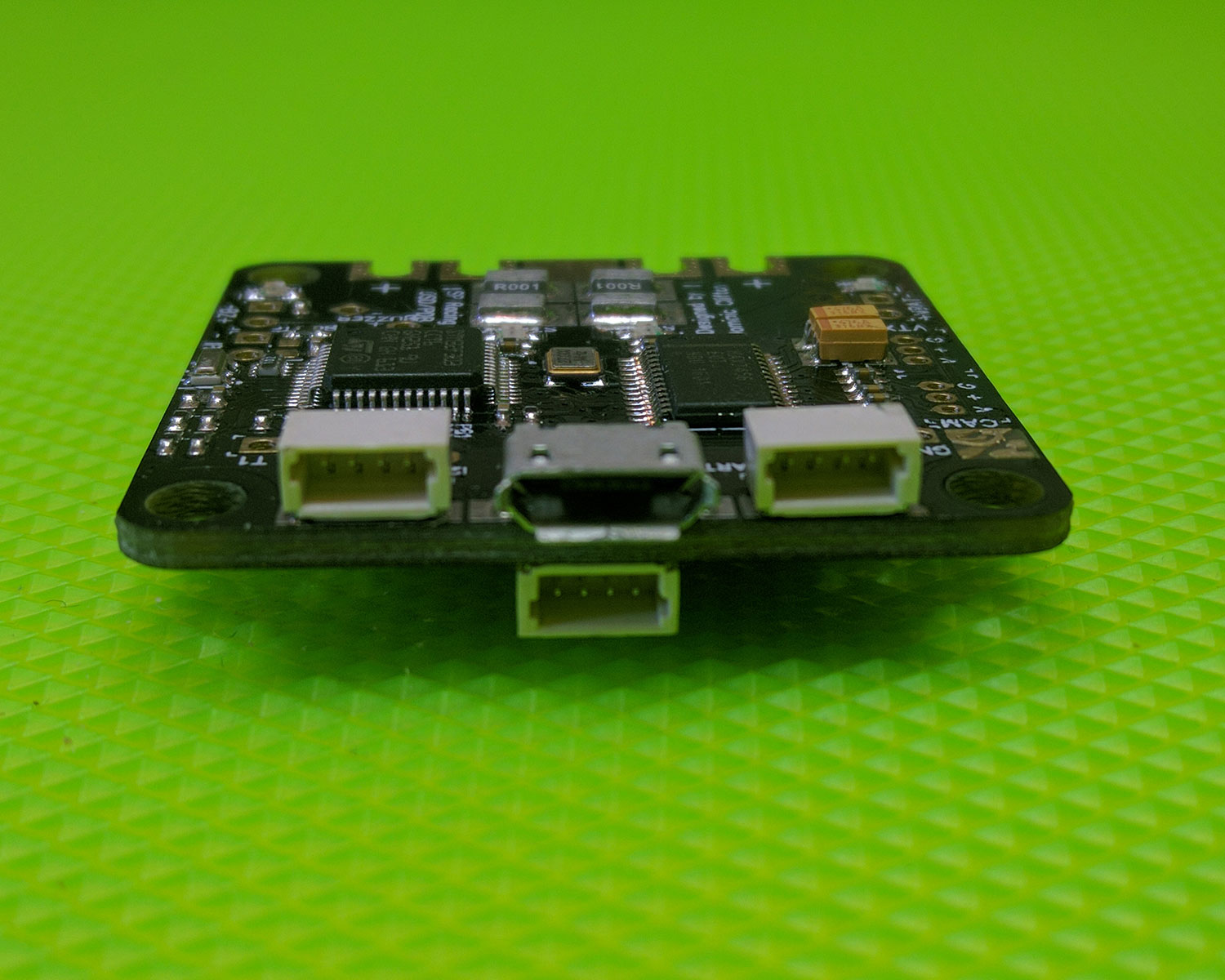

USB socket for configuration of OSD.
No messing around with seperate FTDI adapters and no MWOSD software required!
The SPRacingF3EVO runs Cleanflight which can be configured to suit your needs using a cross-platform GUI (Windows/OSX/Linux).

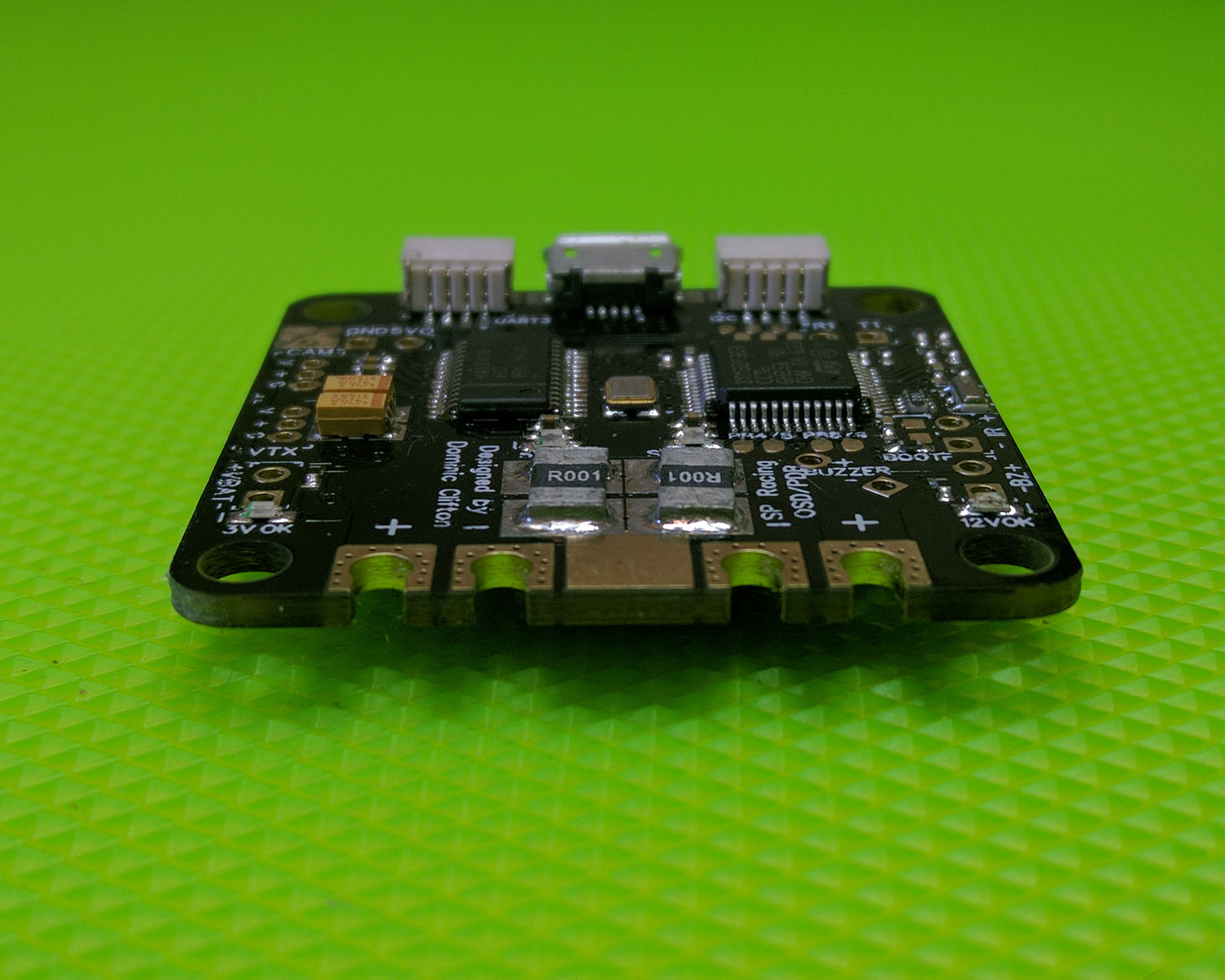

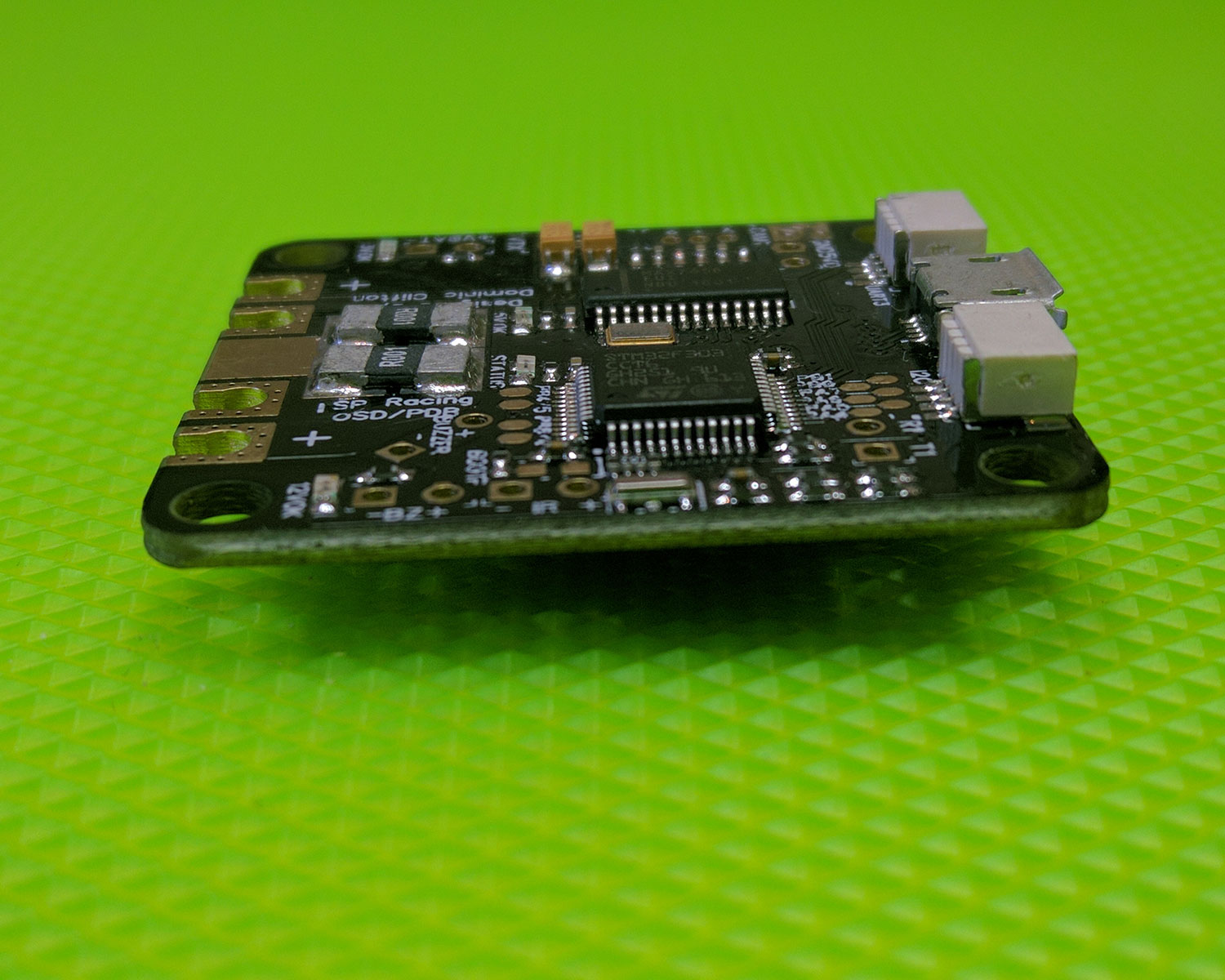

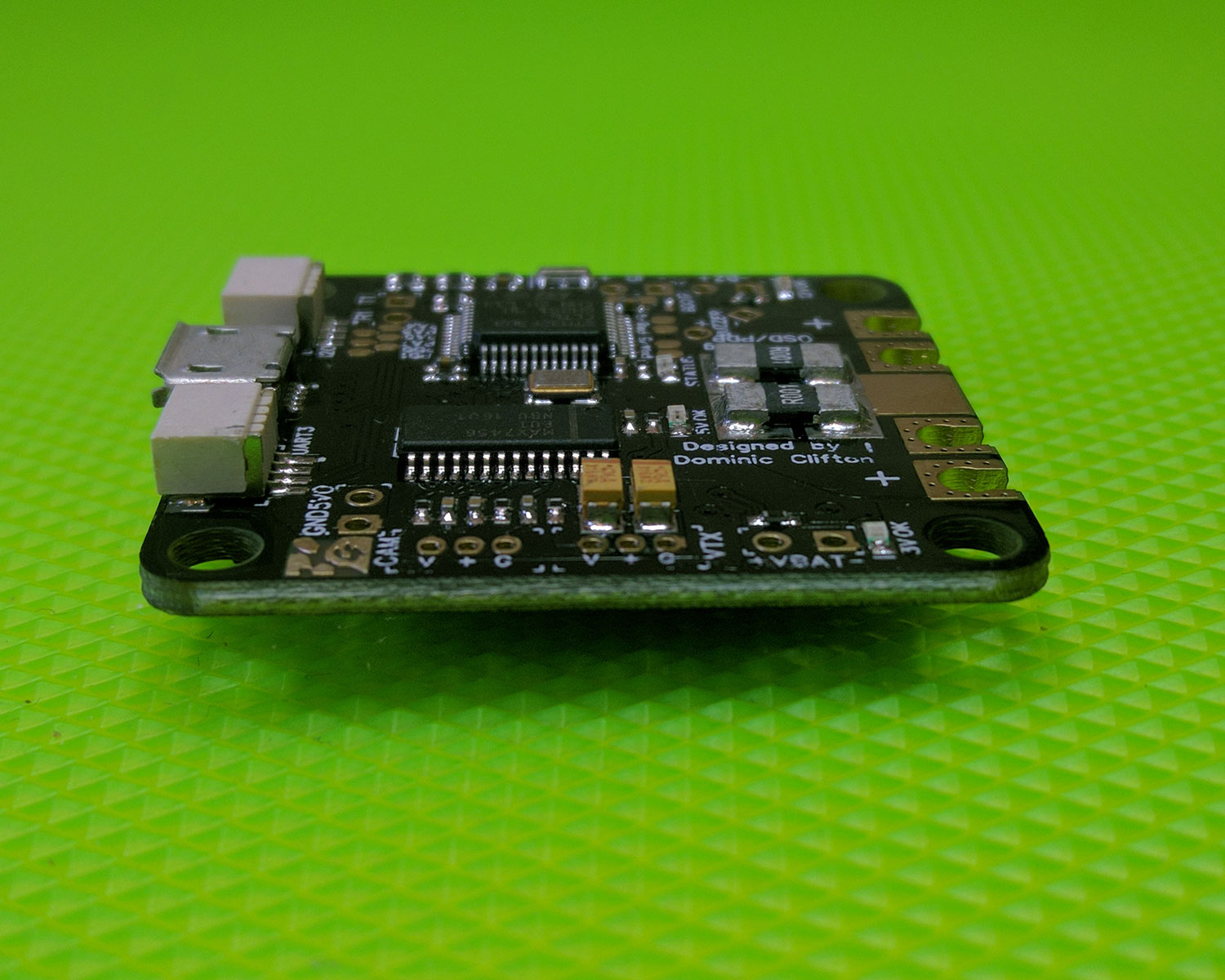

The SPRacingF3OSD has a standard 36x36mm form-factor with 30.5mm mounting holes on a premium 2oz 4 layer copper PCB for durability and maximum current handling.

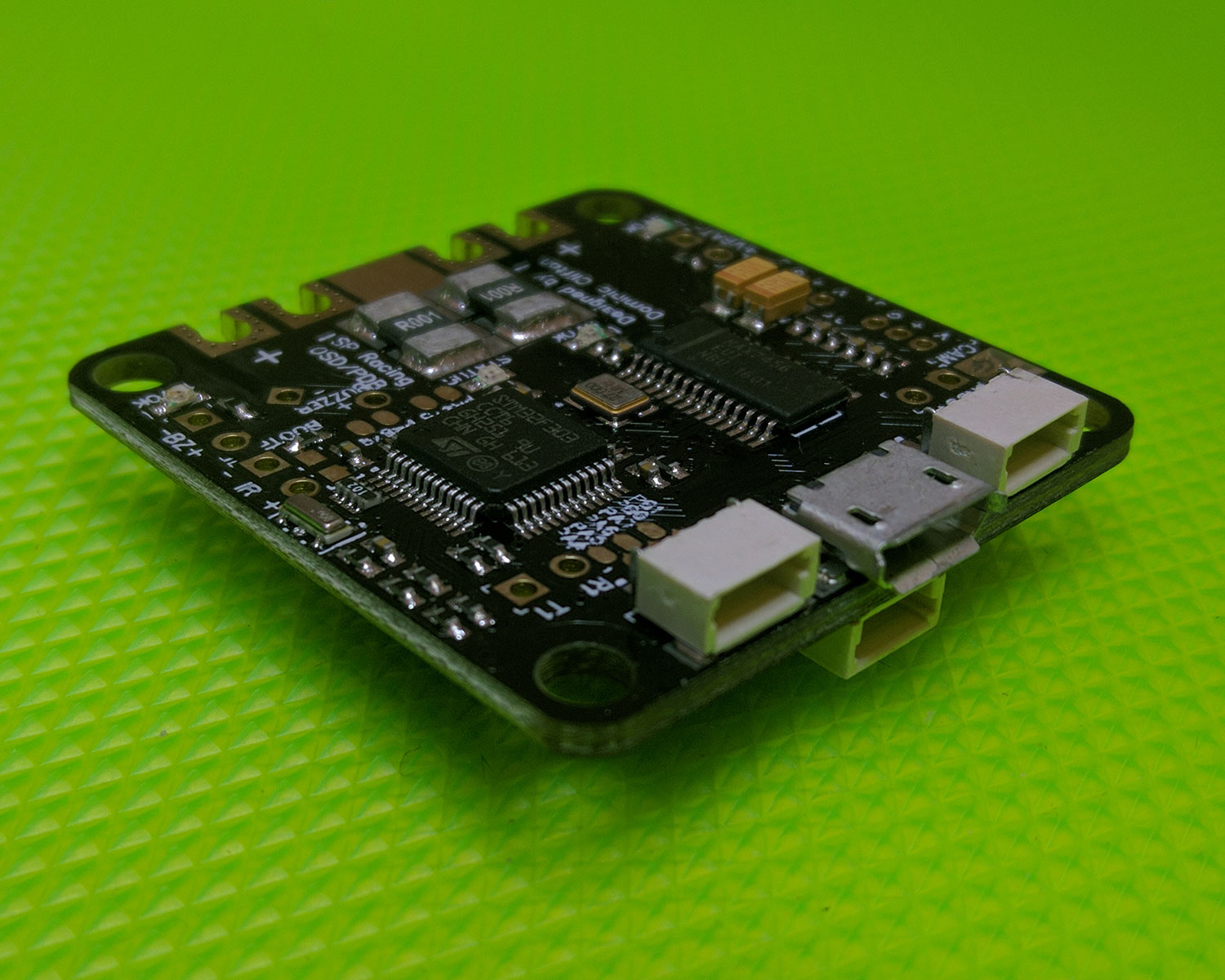

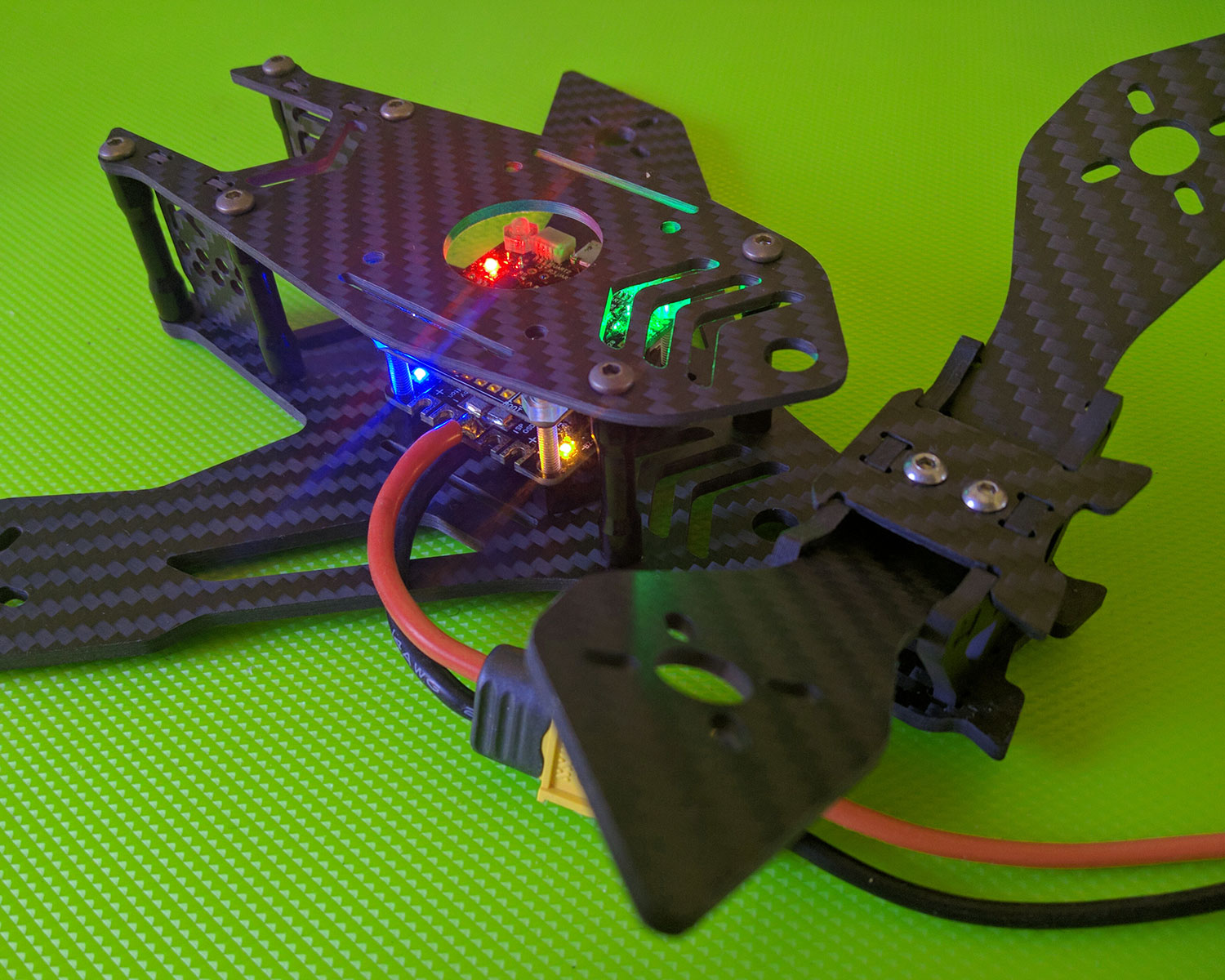

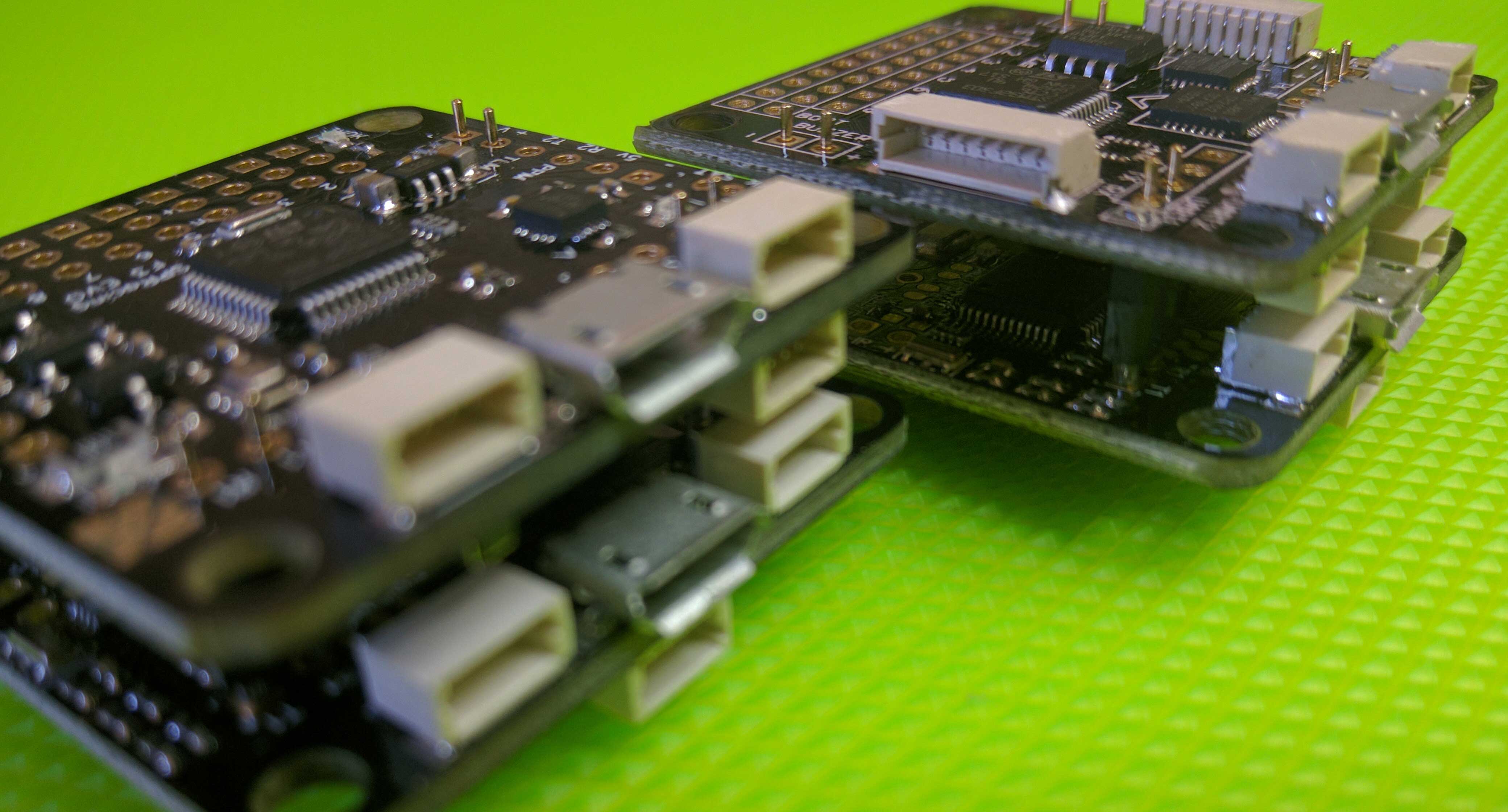

The SPRacingF3OSD is a stackable design. Connect an FC above or below the board for a super-tidy and wire-free installation.
Stackable designs are proven to be more durable in a crash.
Monitor your current draw and capacity used so you know when to land.
Helps extend the life of your batteries
Developer friendly debugging port (SWD), unbrickable bootloader.
Open-source code available on GitHub.

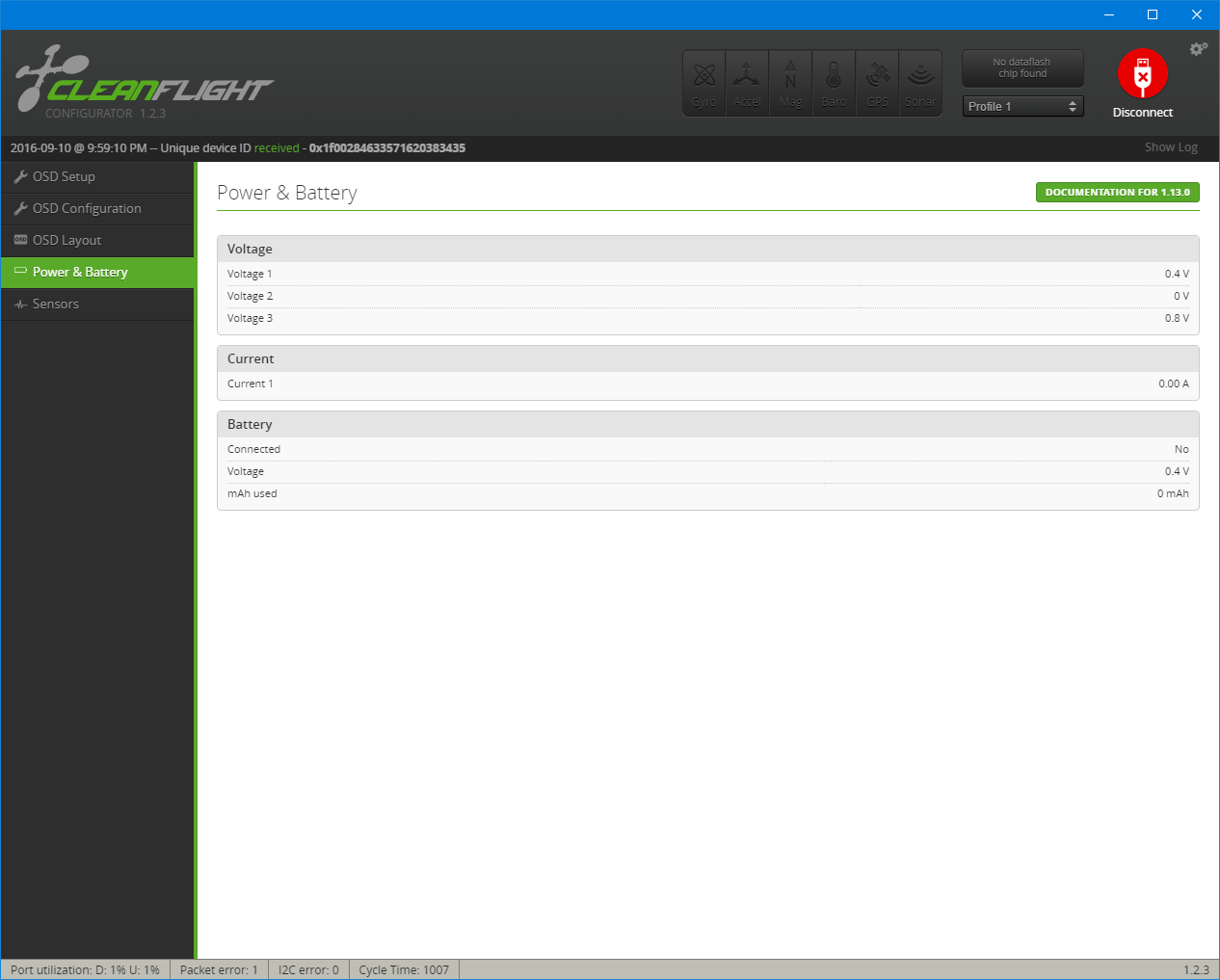

Built in voltage monitoring for Battery, 5V and 12V supplies.
I2C port, always powered. UART port for additional connectivity.
Buzzer solder points to allow easy buzzer mounting.
The SPRacingF3OSD features a copper-etched Cleanflight logo so you can show your support!
Each purchase direct from the Seriously Pro shop also comes with stickers! (when available)

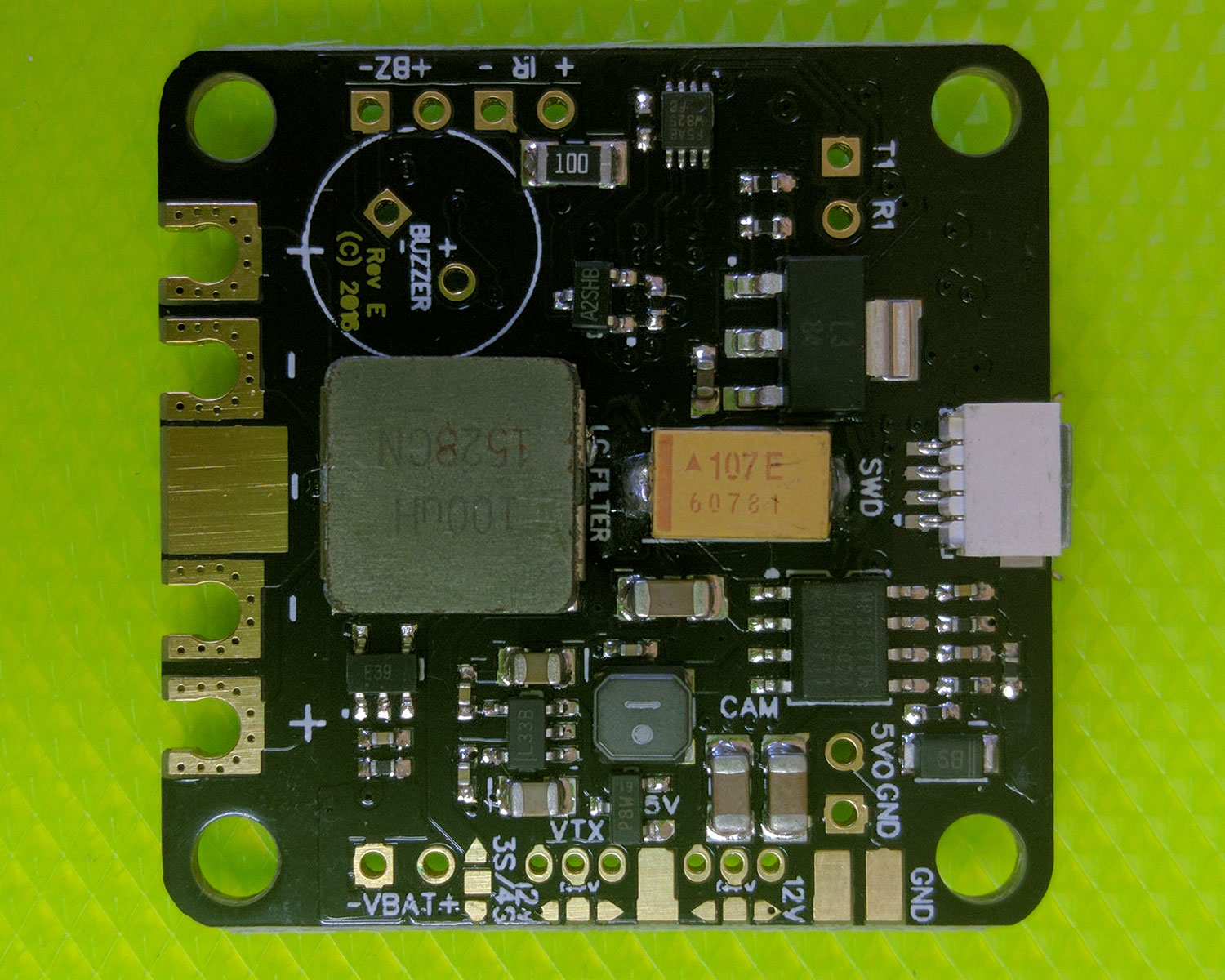

Integrated high-current capable PDB for Battery and ESC connections.
Product photos, screenshots of the project, related websites and tools.
The hardware and software was designed by Dominic Clifton, the lead developer of Cleanflight, to replace the aging 8-bit MWOSD/MinimOSD solutions and sets a new baseline for an open-source OSD solution for 2016.
The SPRacingF3OSD runs the open-source Cleanflight software which has built-in OSD support. Cleanflight has an ever-growing community of friendly developers and users. Being open-source means that you too can contribute to the system.
Cleanflight comes with a detailed manual that is reviewed and maintained by the Cleanflight developers and community. No more out-of-date wiki pages and second-hand information.
Cleanflight based firmware and configuration software was used by most pilots and the winner of the World Drone Prix 2016!
Don't just take our word for it, listen to these excited users!
“Ok now I'm too excited to sleep!”
FinalGlideAus - YouTube“This is AWESOME!”
Daniel Ribeiro - Facebook“hydra + the channel helped me out to get it right”
Petfrogg - #Cleanflight“Cleanflight is the hip new firmware these days.”
TheNickDude - YouTube“Ohhhh yeahhhh”
Richard Dagenais - Facebook“This is awesome stuff”
Trent Jones - Facebook“yeah i was really impressed”
Ben250 - #CleanflightThe SPRacingF3OSD runs Cleanflight OSD and is configured using the Cleanflight Configurator. It has a stack of great features, such as these:
